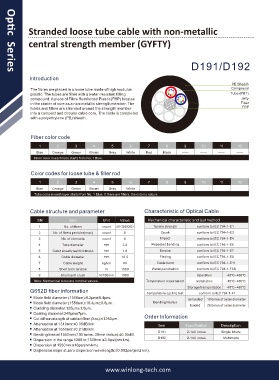

Stranded loose tube cable with non-metallic

central strength member (GYFTY)

D191/D192

Optic Series
Introduction
PE Sheath
The fibres are placed in a loose tube made of high modulus Compound
plastic. The tubes are filled with a water-resistant filling Tube (PBT)
compound. A piece of Fibre Reinforced Plastic(FRP) locates Jelly
in the center of core as a non-metallic strength member. The Fiber
tubes and fillers are stranded around the strength member FRP
into a compact and circular cable core. The cable is completed
with a polyethylene (PE) sheath.

Fiber color code
1 2 3 4 5 6 7 8 9 10 11 12
Blue Orange Green Brown Gray White Red Black —— —— —— ——
Fiber color in each tube starts from No. 1 Blue.

Color codes for loose tube & filler rod

1 2 3 4 5 6 7 8 9 10 11 12
Blue Orange Green Brown Gray White —— —— —— —— —— ——
Tube color in each layer starts from No. 1 Blue. If there are fillers, the color is nature.

Cable structure and parameter Characteristic of Optical Cable

SN Item Unit Value Mechanical characteristic and test method
1 No. of fibers count 48(G652D) Tensile strength conform to IEC 794-1-E1
2 No. of fibers per tube(max) count 8 Crush conform to IEC 794-1-E3
3 No. of elements count 6 Impact conform to IEC 794-1-E4
4 Tube diameter mm 2.2 Repeated bending conform to IEC 794-1-E6
5 Outer sheath wall thickness mm 1.8 Torsion conform to IEC 794-1-E7
6 Cable diameter mm 10.5 Flexing conform to IEC 794-1-E8
7 Cable weight kg/km 98 Cable bend conform to IEC 794-1-E11
8 Short term tension N 1500 Water penetration conform to IEC 794-1-F5B
9 Short term crush N/100mm 1000 Operation -40℃~+60℃
Note: Mechanical sizes are nominal values. Temperature requirement Installation -10℃~+60℃
Storage/transportation -40℃~+60℃
G652D fiber information Temperature cycling test conform to IEC 794-1-F1
Mode field diameter (1310nm):9.2μm±0.4μm. Unloaded
10 times of outer diameter
Mode field diameter (1550nm):10.4μm±0.8μm. Bending Radius loaded
20 times of outer diameter
Cladding diameter:125μm±1.0μm.
Coating diameter:245μm±7μm.
Cut off wavelength of cabled fiber ( cc):≤1260μm. Order Information
Attenuation at 1310nm:≤0.35dB/km. Item Specification Description
Attenuation at 1550nm:≤0.21dB/km.
Bending loss at 1550nm (100 turns, 30mm radius):≤0.05dB. D191 2-144 cores Single Mode
Dispersion in the range 1288 to 1339nm:≤3.5ps/(nm km). D192 2-144 cores Multimode
Dispersion at 1550nm:≤18ps/(nm km).
Dispersion slope at zero dispersion wavelength:≤0.092ps/(nm2 km).
