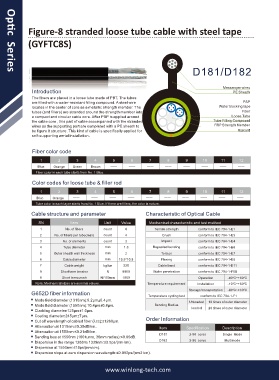

Figure-8 stranded loose tube cable with steel tape

(GYFTC8S)

D181/D182
Optic Series

Messenger wires
Introduction PE Sheath
The fibers are placed in a loose tube made of PBT. The tubes
are filled with a water-resistant filling compound. A steel wire PSP
locates in the center of core as a metallic strength member. The Water blocking tape
tubes (and fillers) are stranded around the strength member into Fiber
a compact and circular cable core. After PSP is applied around Loose Tube
the cable core , this part of cable accompanied with the stranded Tube Filling Compound
wires as the supporting part are completed with a PE sheath to FRP Strength Member
be figure 8 structure. This kind of cable is specifically applied for Ripcord
self-supporting aerial installation.

Fiber color code

1 2 3 4 5 6 7 8 9 10 11 12
Blue Orange Green Brown —— —— —— —— —— —— —— ——
Fiber color in each tube starts from No. 1 Blue.

Color codes for loose tube & filler rod
1 2 3 4 5 6 7 8 9 10 11 12
Blue Orange —— —— —— —— —— —— —— —— —— ——
Tube color in each layer starts from No. 1 Blue. If there are fillers, the color is nature.
Cable structure and parameter Characteristic of Optical Cable
SN Item Unit Value Mechanical characteristic and test method
1 No. of fibers count 8 Tensile strength conform to IEC 794-1-E1
2 No. of fibers per tube(max) count 4 Crush conform to IEC 794-1-E3
3 No. of elements count 2 Impact conform to IEC 794-1-E4
4 Tube diameter mm 1.8 Repeated bending conform to IEC 794-1-E6
5 Outer sheath wall thickness mm 2 Torsion conform to IEC 794-1-E7
6 Cable diameter mm 19.5*10.8 Flexing conform to IEC 794-1-E8
7 Cable weight kg/km 220 Cable bend conform to IEC 794-1-E11
8 Short term tension N 8000 Water penetration conform to IEC 794-1-F5B
9 Short term crush N/100mm 1000 Operation -40℃~+60℃
Note: Mechanical sizes are nominal values. Temperature requirement Installation -10℃~+60℃
Storage/transportation -40℃~+60℃
G652D fiber information Temperature cycling test conform to IEC 794-1-F1
Mode field diameter (1310nm):9.2μm±0.4μm. Unloaded
10 times of outer diameter
Mode field diameter (1550nm):10.4μm±0.8μm. Bending Radius loaded
Cladding diameter:125μm±1.0μm. 20 times of outer diameter
Coating diameter:245μm±7μm.
Cut off wavelength of cabled fiber ( cc):≤1260μm. Order Information
Attenuation at 1310nm:≤0.35dB/km. Item Specification Description
Attenuation at 1550nm:≤0.21dB/km.
Bending loss at 1550nm (100 turns, 30mm radius):≤0.05dB. D181 2-96 cores Single Mode
Dispersion in the range 1288 to 1339nm:≤3.5ps/(nm km). D182 2-96 cores Multimode
Dispersion at 1550nm:≤18ps/(nm km).
Dispersion slope at zero dispersion wavelength:≤0.092ps/(nm2 km).
