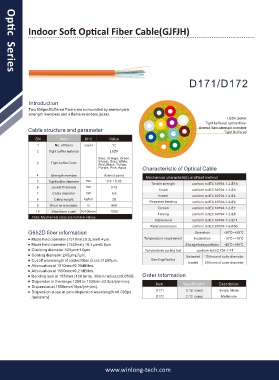

Indoor Soft Optical Fiber Cable(GJFJH)

Optic Series
D171/D172

Introduction
Two 900μm Buffered Fibers are surrounded by aramid yarn
strength members and a flame-retardant jacket.
LSZH jacket
Tight buffered optical fiber
Cable structure and parameter Aramid Yarn strength member
Tight Buffered
SN Item Unit Value
1 No. of fibers count 12
2 Tight buffer material LSZH
Blue, Orange, Green,
3 Tight buffer Color Brown, Gray, White,
Red, Black, Yellow,
Purple, Pink, Aqua Characteristic of Optical Cable
4 Strength member Aramid yarns Mechanical characteristic and test method
5 Tight buffer diameter mm 0.9±0.05
Tensile strength conform to IEC 60794-1-2-E1A
6 Jacket thickness mm 0.75
Crush conform to IEC 60794-1-2-E3
7 Cable diameter mm 5.6
Impact conform to IEC 60794-1-2-E4
8 Cable weight kg/km 28
Repeated bending conform to IEC 60794-1-2-E6
9 Short term tension N 660
Torsion conform to IEC 60794-1-2-E7
10 Short term crush N/100mm 1000
Flexing conform to IEC 60794-1-2-E8
Note: Mechanical sizes are nominal values.
Cable bend conform to IEC 60794-1-2-E11
Water penetration conform to IEC 60794-1-2-F5B
G652D fiber information Operation -20℃~+85℃
Mode field diameter (1310nm):9.2μm±0.4μm. Temperature requirement Installation -10℃~+70℃
Mode field diameter (1550nm):10.4μm±0.8μm. Storage/transportation -40℃~+85℃
Cladding diameter:125μm±1.0μm. Temperature cycling test conform to IEC 794-1-F1
Coating diameter:245μm±7μm. Unloaded
10 times of outer diameter
Cut off wavelength of cabled fiber ( cc):≤1260μm. Bending Radius loaded
20 times of outer diameter
Attenuation at 1310nm:≤0.35dB/km.
Attenuation at 1550nm:≤0.21dB/km.
Bending loss at 1550nm (100 turns, 30mm radius):≤0.05dB. Order Information
Dispersion in the range 1288 to 1339nm:≤3.5ps/(nm km). Item Specification Description
Dispersion at 1550nm:≤18ps/(nm km).
Dispersion slope at zero dispersion wavelength:≤0.092ps D171 2-12 cores Single Mode
/(nm2 km). D172 2-12 cores Multimode
