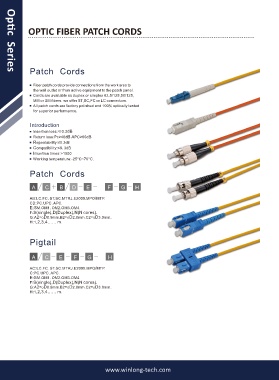

OPTIC FIBER PATCH CORDS
Patch Cords
Optic Series
Fiber patch cords provide connections from the work area to
the wall outlet or from active equipment to the patch panel.
Cords are available as duplex or simplex 62.5/125,50/125,
MM or SM fibers. we offer ST,SC,FC or LC connectors.
All patch cords are factory polished and 100% optically tested
for superior performance.
Introduction
Insertion loss:≤0.3dB
Return loss:Pc≥40dB APC≥60dB
Repeatability:≤0.3dB
Compatibility:≤0.3dB
Insertion times:>1000
Working temperature:-25°C~70°C.
Patch Cords
A C B D E F G H
AB:LC.FC. ST.SC.MTRJ.E2000.MPO/MTP.
CD:PC.UPC. APC.
E:SM.OM1. OM2.OM3.OM4.
F:S(single),D(Duplex),N(N cores).
G:A2=OD0.9mm.B2=OD2.0mm.C2=OD3.0mm.
H:1,2,3,4…… m.
Pigtail
A C E F G H
AC:LC.FC. ST.SC.MTRJ.E2000.MPO/MTP.
C:PC.UPC. APC.
E:SM.OM1. OM2.OM3.OM4.
F:S(single),D(Duplex),N(N cores).
G:A2=OD0.9mm.B2=OD2.0mm.C2=OD3.0mm.
H:1,2,3,4…… m.
