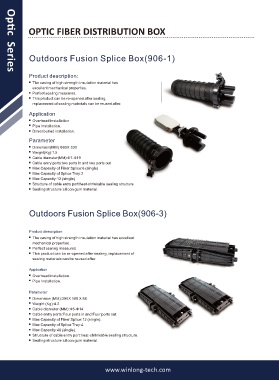

Page 20 - Optc Series

OPTIC FIBER DISTRIBUTION BOX

Outdoors Fusion Splice Box(906-1)

Optic Series
Product description:
The casing of high strength insulation material has
excellent mechanical properties.
Perfect sealing measures.
This product can be re-opened after sealing,
replacement of sealing materials can be reused after.
Application
Overhead installation.
Pipe Installation.
Direct buried installation.
Parameter
Dimension(MM):Φ85X 330
Weight(Kg):1.5
Cable diameter(MM):Ф7-Ф19
Cable entry ports:two ports in and two ports out
Max Capacity of Fiber Splice:6 (single)
Max Capacity of Splice Tray:2
Max Capacity:12 (single)
Structure of cable entry port:heat-shrinkable sealing structure
Sealing structure:silicon gum material.

Outdoors Fusion Splice Box(906-3)

Product description:
The casing of high strength insulation material has excellent
mechanical properties .
Perfect sealing measures.
This product can be re-opened after sealing, replacement of
sealing materials can be reused after.

Application
Overhead installation.
Pipe Installation.

Parameter
Dimension (MM):390X 180 X 88.
Weight (Kg):4.2.
Cable diameter (MM):Ф5-Ф14.
Cable entry ports:Four ports in and Four ports out.
Max Capacity of Fiber Splice:12 (single).
Max Capacity of Splice Tray:4.
Max Capacity:48 (single).
Structure of cable entry port:heat-shrinkable sealing structure.
Sealing structure:silicon gum material.
