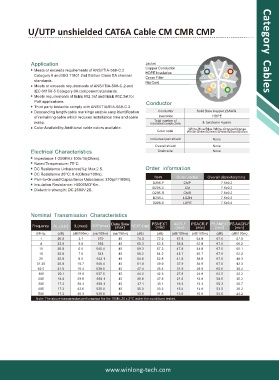

Page 9 - Category Cables

U/UTP unshielded CAT6A Cable CM CMR CMP

Application Jacket Category Cables
Meets or exceeds requirements of ANSI/TIA-568-C.2 Copper Conductor
Category 6 and ISO 11801 2nd Edition Class EA channel HDPE Insulation
Cross Filler
standards. Rip Cord
Meets or exceeds requirements of ANSI/TIA-568-C.2 and
IEC 61156-5 Category 6A component standards.
Meets requirements of IEEE 802.3af and IEEE 802.3at for
PoE applications. Conductor
Third party tested to comply with ANSI/TIA/EIA-568-C.2.
Descending length cable markings enable easy identification Conductor Solid Bare Copper 23AWG
of remaining cable which reduces installation time and cable Insulation HDPE
Total number of
scrap. insulated conductors 8, twisted in 4 pairs
Color Availability:Additional cable colors available. White-Blue/Blue,White-Orange/Orange
Color code White-Green/Green,White-Brown/Brown
Individual pair shield None
Overall shield None
Electrical Characteristics Drain wire None

Impedance:1-250MHz 100±15(Ohms).
Rated Temperature: 75°C.
DC Resistance Unbalance(%): Max 2.5. Order information
DC Resistance 20°C: 8.4(Ohms/100m).
Pair-to-Gruond Capacitance Unbalance: 330(pF/100M). Item Outer Jacket Overall diameter(mm)
Insulation Resistance: >5000MΩ*Km. D295-P CMP 7.5±0.2
Dielectric strength: DC 2500V 2S. D295-C CM 7.5±0.2
D295-R CMR 7.5±0.2
D295-L LSZH 7.5±0.2
D295-E LDPE 7.5±0.2

Nominal Transmission Characteristics

Frequency RL (min) IL(max) DOP(max) Delay Skew NEXT (min) PSNEXT ACR-F PSACR-F PS ANEXTPS AACR-F
(min)
(min)
(min)
(min)
(min)
(max)
(MH)z (dB) (dB/100m) (ns/100m) (ns/100m) (dB) (dB) (dB/100m) (dB/100m) (dB) (dB/100m)
1 20.0 2.1 570 45 74.3 72.3 67.8 64.8 67.0 67.0
4 23.0 3.8 552 45 65.3 63.3 55.8 52.8 67.0 66.2
10 25.0 6.0 545.4 45 59.3 57.3 47.8 44.8 67.0 60.1
16 25.0 7.6 543 45 56.2 54.2 43.7 40.7 67.0 52.2
20 25.0 8.5 542.1 45 54.8 52.8 41.8 38.8 67.0 48.3
31.25 25.0 10.7 540.4 45 51.9 49.9 37.9 34.9 67.0 42.3
62.5 21.5 15.4 538.6 45 47.4 45.4 31.9 28.9 65.6 38.2
100 20.1 19.8 537.6 45 44.3 42.3 27.8 24.8 62.5 32.2
200 18.0 29.0 536.1 45 39.8 37.8 21.8 18.8 58.0 30.2
300 17.3 36.4 536.1 45 37.1 35.1 18.3 15.3 55.3 28.7
400 17.3 43.0 535.8 45 35.3 33.3 15.8 12.8 53.5 26.2
500 17.3 45.3 535.6 45 33.8 31.8 13.8 10.8 52.0 24.2
Note: The above transmission performance for the 100M, 20 ± 2°C under the conditions tested.
