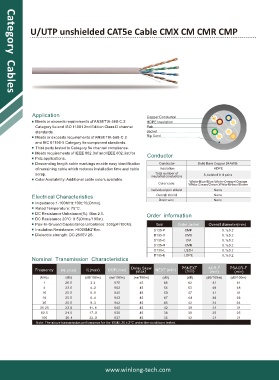

Page 12 - Category Cables

U/UTP unshielded CAT5e Cable CMX CM CMR CMP

Category Cables

Application Copper Conductor
Meets or exceeds requirements of ANSI/TIA-568-C.2 HDPE Insulation
Category 5e and ISO 11801 2nd Edition Class D channel Pair
standards. Jacket
Meets or exceeds requirements of ANSI/TIA-568-C.2 Rip Cord
and IEC 61156-5 Category 5e component standards.
Third party tested to Category 5e channel compliance.
Meets requirements of IEEE 802.3af and IEEE 802.3at for Conductor
PoE applications.
Descending length cable markings enable easy identification Conductor Solid Bare Copper 24AWG
of remaining cable which reduces installation time and cable Insulation HDPE
Total number of
scrap. insulated conductors 8, twisted in 4 pairs
Color Availability: Additional cable colors available.
White-Blue/Blue,White-Orange/Orange
Color code White-Green/Green,White-Brown/Brown
Individual pair shield None
Electrical Characteristics Overall shield None
Impedance:1-100MHz 100±15(Ohms). Drain wire None
Rated Temperature: 75°C.
DC Resistance Unbalance(%): Max 2.5. Order information
DC Resistance 20°C: 9.5(Ohms/100m).
Pair-to-Gruond Capacitance Unbalance: 330(pF/100M). Item Outer Jacket Overall diameter(mm)
Insulation Resistance: >5000MΩ*Km. D135-P CMP 5.1±0.2
Dielectric strength: DC 2500V 2S. D135-X CMX 5.1±0.2
D135-C CM 5.1±0.2
D135-R CMR 5.1±0.2
D135-L LSZH 5.1±0.2
D135-E LDPE 5.1±0.2
Nominal Transmission Characteristics

Frequency RL (min) IL(max) DOP(max) Delay Skew NEXT (min) PSNEXT ACR-F PSACR-F
(min)
(min)
(min)
(max)
(MH)z (dB) (dB/100m) (ns/100m) (ns/100m) (dB) (dB) (dB/100m) (dB/100m)
1 20.0 2.2 570 45 65 62 61 61
4 23.0 4.2 552 45 56 53 48 48
10 25.0 6.5 545 45 50 47 41 41
16 25.0 8.4 543 45 47 44 36 36
20 25.0 9.3 542 45 45 42 34 34
31.25 23.6 11.6 540 45 42 39 31 31
62.5 21.5 17.0 538 45 38 35 25 25
100 20.1 22.0 537 45 35 32 21 21
Note: The above transmission performance for the 100M, 20 ± 2°C under the conditions tested.
