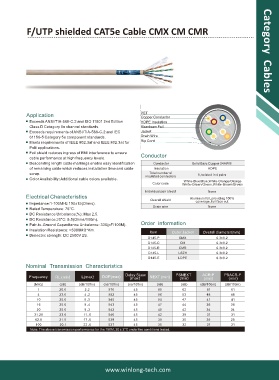

F/UTP shielded CAT5e Cable CMX CM CMR Category Cables

Application PET
Copper Conductor
Exceeds ANSI/TIA-568-C.2 and ISO 11801 2nd Edition HDPE Insulation
Class D Category 5e channel standards. Aluminum Foil
Exceeds requirements of ANSI/TIA-568-C.2 and IEC Jacket
61156-5 Category 5e component standards. Drain Wire
Meets requirements of IEEE 802.3af and IEEE 802.3at for Rip Cord
PoE applications.
Foil shield reduces ingress of EMI interference to ensure Conductor
cable performance at high frequency levels.
Descending length cable markings enable easy identification Conductor Solid Bare Copper 24AWG
of remaining cable which reduces installation time and cable Insulation HDPE
scrap. Total number of 8, twisted in 4 pairs
Color Availability: Additional cable colors available. insulated conductors White-Blue/Blue,White-Orange/Orange
Color code White-Green/Green,White-Brown/Brown
Individual pair shield None
Electrical Characteristics
Overall shield Aluminum foil, providing 100%
coverage, foil face out.
Impedance:1-100MHz 100±15(Ohms).
Rated Temperature: 75°C. Drain wire None
DC Resistance Unbalance(%): Max 2.5.
DC Resistance 20°C: 9.5(Ohms/100m).
Pair-to-Gruond Capacitance Unbalance: 330(pF/100M). Order information
Insulation Resistance: >5000MΩ*Km. Item Outer Jacket Overall diameter(mm)
Dielectric strength: DC 2500V 2S.
D145-P CMX 6.3±0.2
D145-C CM 6.3±0.2
D145-R CMR 6.3±0.2
D145-L LSZH 6.3±0.2
D145-E LDPE 6.3±0.2
Nominal Transmission Characteristics

Frequency RL (min) IL(max) DOP(max) Delay Skew NEXT (min) PSNEXT ACR-F PSACR-F
(min)
(min)
(min)
(max)
(MH)z (dB) (dB/100m) (ns/100m) (ns/100m) (dB) (dB) (dB/100m) (dB/100m)
1 20.0 2.2 570 45 65 62 61 61
4 23.0 4.2 552 45 56 53 48 48
10 25.0 6.5 545 45 50 47 41 41
16 25.0 8.4 543 45 47 44 36 36
20 25.0 9.3 542 45 45 42 34 34
31.25 23.6 11.6 540 45 42 39 31 31
62.5 21.5 17.0 538 45 38 35 25 25
100 20.1 22.0 537 45 35 32 21 21
Note: The above transmission performance for the 100M, 20 ± 2°C under the conditions tested.
