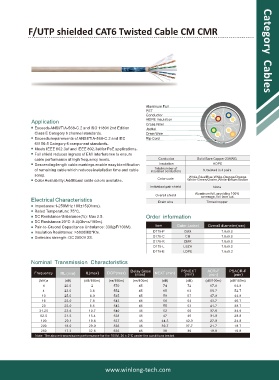

F/UTP shielded CAT6 Twisted Cable CM CMR Category Cables

Aluminum Foil
PET
Conductor
Application HDPE Insulation
Cross Filler
Exceeds ANSI/TIA-568-C.2 and ISO 11801 2nd Edition Jacket
Class E Category 6 channel standards. Drain Wire
Exceeds requirements of ANSI/TIA-568-C.2 and IEC Rip Cord
61156-5 Category 6 component standards.
Meets IEEE 802.3af and IEEE 802.3at for PoE applications.
Foil shield reduces ingress of EMI interference to ensure
cable performance at high frequency levels. Conductor Solid Bare Copper 23AWG
Descending length cable markings enable easy identification Insulation HDPE
Total number of
of remaining cable which reduces installation time and cable insulated conductors 8, twisted in 4 pairs
scrap. Conductor White-Blue/Blue,White-Orange/Orange
Color Availability: Additional cable colors available. Color code White-Green/Green,White-Brown/Brown
Individual pair shield None
Overall shield Aluminum foil, providing 100%
coverage, foil face out.
Electrical Characteristics Drain wire Tinned copper
Impedance:1-250MHz 100±15(Ohms).
Rated Temperature: 75°C.
DC Resistance Unbalance(%): Max 2.5. Order information
DC Resistance 20°C: 8.4(Ohms/100m).
Pair-to-Gruond Capacitance Unbalance: 330(pF/100M). Item Outer Jacket Overall diameter(mm)
Insulation Resistance: >5000MΩ*Km. D175-P CMX 7.6±0.2
Dielectric strength: DC 2500V 2S. D175-C CM 7.6±0.2
D175-R CMR 7.6±0.2
D175-L LSZH 7.6±0.2
D175-E LDPE 7.6±0.2

Nominal Transmission Characteristics

Frequency RL (min) IL(max) DOP(max) Delay Skew NEXT (min) PSNEXT ACR-F PSACR-F
(min)
(min)
(min)
(max)
(MH)z (dB) (dB/100m) (ns/100m) (ns/100m) (dB) (dB) (dB/100m) (dB/100m)
1 20.0 2 570 45 74 72 67.8 64.8
4 23.0 3.8 552 45 65 63 55.7 52.7
10 25.0 6.0 545 45 59 57 47.8 44.8
16 25.0 7.6 543 45 56 54 43.7 40.7
20 25.0 8.5 542 45 55 53 41.7 38.7
31.25 23.6 10.7 540 45 52 50 37.9 34.9
62.5 21.5 15.4 538 45 47 45 31.8 28.8
100 20.1 19.8 537 45 44.3 42.3 27.8 24.8
200 18.0 29.0 536 45 39.7 37.7 21.7 18.7
250 17.3 32.8 535 45 38 36 19.8 16.8
Note: The above transmission performance for the 100M, 20 ± 2°C under the conditions tested.
