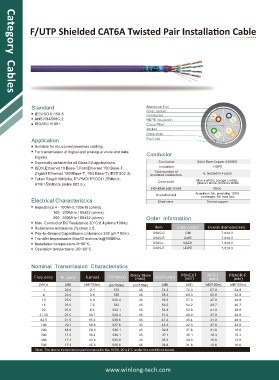

F/UTP Shielded CAT6A Twisted Pair Installation Cable

Category Cables

Standard Aluminum Foil
IEC/ISO 61156-5 Inner Jacket
Conductor
ANSI/TIA568C.2 HDPE Insulation
ISO/IEC 11801 Cross Filler
Jacket
Drain Wire
Application Rip Cord
Suitable for structured premises cabling.
For transmission of digital and analogue voice and data Conductor
signals.
Especially suitable for all Class EA applications. Conductor Solid Bare Copper 23AWG
ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T, Insulation HDPE
Total number of
Gigabit Ethernet 1000Base-T ,10G Base-T.(IEEE 802.3). insulated conductors 8, twisted in 4 pairs
Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s, Color code blue x white, orange x white,
ATM 155Mbit/s.(IEEE 802.5 ). green x white, brown x white
Individual pair shield None
Overall shield Aluminum foil, providing 100%
coverage, foil face out.
Electrical Characteristics Drain wire Tinned copper
Impedance:4 - 100MHz 100±15 (ohms) .
100 - 200MHz 100±22 (ohms).
200 - 500MHz 100±32 (ohms). Order information
Max. Conductor DC Resistance 20°C:8.4(ohms/100m).
Resistance unbalance (%):max 2.5. Item Outer Jacket Overall diameter(mm)
Pair-to-Ground Capacitance Unbalance 330 (pF/100m). D305-C CM 7.6±0.3
Transfer Impendance:Max10 mohms/m@100MHz. D305-R CMR 7.6±0.3
Installation temperature:0~50°C. D305-L LSZH 7.6±0.3
Operation temperature:-20~60°C. D305-E LDPE 7.6±0.3

Nominal Transmission Characteristics

Frequency RL (min) IL(max) DOP(max) Delay Skew NEXT (min) PSNEXT ACR-F PSACR-F
(min)
(min)
(min)
(max)
(MH)z (dB) (dB/100m) (ns/100m) (ns/100m) (dB) (dB) (dB/100m) (dB/100m)
1 20.0 2.1 570 45 74.3 72.3 67.8 64.8
4 23.0 3.8 552 45 65.3 63.3 55.8 52.8
10 25.0 6.0 545.4 45 59.3 57.3 47.8 44.8
16 25.0 7.6 543 45 56.2 54.2 43.7 40.7
20 25.0 8.5 542.1 45 54.8 52.8 41.8 38.8
31.25 25.0 10.7 540.4 45 51.9 49.9 37.9 34.9
62.5 21.5 15.4 538.6 45 47.4 45.4 31.9 28.9
100 20.1 19.8 537.6 45 44.3 42.3 27.8 24.8
200 18.0 29.0 536.1 45 39.8 37.8 21.8 18.8
300 17.3 36.4 536.1 45 37.1 35.1 18.3 15.3
400 17.3 43.0 535.8 45 35.3 33.3 15.8 12.8
500 17.3 45.3 535.6 45 33.8 31.8 13.8 10.8
Note: The above transmission performance for the 100M, 20 ± 2°C under the conditions tested.
