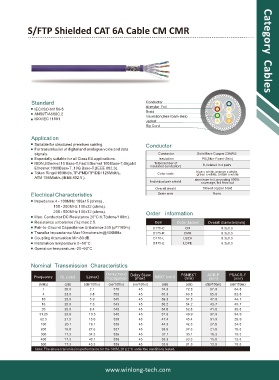

S/FTP Shielded CAT 6A Cable CM CMR Category Cables

Standard Conductor
IEC/ISO 61156-5 Al-mylar Foil
Braid
ANSI/TIA568C.2
ISO/IEC 11801 Insulation(skin-foam-skin)
Jacket
Rip Cord

Application
Suitable for structured premises cabling. Conductor
For transmission of digital and analogue voice and data
signals. Conductor Solid Bare Copper 23AWG
Especially suitable for all Class EA applications. Insulation PE(Skin-Foam-Skin)
ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T,Gigabit Total number of 8, twisted in 4 pairs
Ethernet 1000Base-T ,10G Base-T.(IEEE 802.3). insulated conductors
Token Ring4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s, Color code blue x white, orange x white,
green x white, brown x white
ATM 155Mbit/s.(IEEE 802.5 ).
Individual pair shield aluminum foil, providing 100%
coverage, foil face out
Overall shield Tinned copper braid
Electrical Characteristics Drain wire None
Impedance:4 - 100MHz 100±15 (ohms) .
100 - 200MHz 100±22 (ohms).
200 - 500MHz 100±32 (ohms). Order information
Max. Conductor DC Resistance 20°C:8.7(ohms/100m).
Resistance unbalance (%):max 2.5. Item Outer Jacket Overall diameter(mm)
Pair-to-Ground Capacitance Unbalance 330 (pF/100m). D175-C CM 8.3±0.3
Transfer Impendance:Max10 mohms/m@100MHz. D175-R CMR 8.3±0.3
Coupling Attenuation:Min 80 dB. D175-L LSZH 8.3±0.3
Installation temperature:0~50°C. D175-E LDPE 8.3±0.3
Operation temperature:-20~60°C.

Nominal Transmission Characteristics
Delay(max) Delay Skew PSNEXT ACR-F PSACR-F
Frequency RL (min) IL(max) Propagation (max) NEXT (min) (min) (min) (min)
(MH)z (dB) (dB/100m) (ns/100m) (ns/100m) (dB) (dB) (dB/100m) (dB/100m)
1 20.0 2.1 570 45 74.3 72.3 67.8 64.8
4 23.0 3.8 552 45 65.3 63.3 55.8 52.8
10 25.0 5.9 545 45 59.3 57.3 47.8 44.7
16 25.0 7.5 543 45 56.2 54.2 43.7 40.7
20 25.0 8.4 542 45 54.8 52.8 41.8 38.8
31.25 23.6 10.5 540 45 51.9 49.9 37.9 34.9
62.5 21.5 15.0 539 45 47.4 45.4 31.9 28.9
100 20.1 19.1 538 45 44.3 42.3 27.8 24.8
200 18.0 27.6 537 45 39.8 37.8 21.8 18.8
300 17.3 34.3 536 45 37.1 35.1 18.3 15.3
400 17.3 40.1 536 45 35.3 33.3 15.8 12.8
500 17.3 45.3 536 45 33.8 31.8 13.8 10.8
Note: The above transmission performance for the 100M, 20 ± 2°C under the conditions tested.
