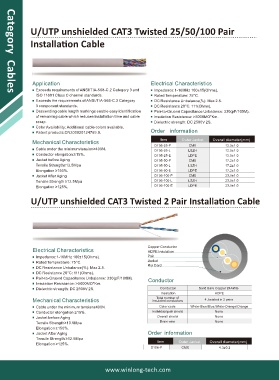

Page 16 - Category Cables

U/UTP unshielded CAT3 Twisted 25/50/100 Pair

Installation Cable

Application Electrical Characteristics
Exceeds requirements of ANSI/TIA-568-C.2 Category 3 and Impedance:1-16MHz 100±15(Ohms).
ISO 11801 Class C channel standards. Rated Temperature: 75°C.
Category Cables
Exceeds the requirements of ANSI/TIA-568-C.2 Category DC Resistance Unbalance(%): Max 2.5.
3 component standards. DC Resistance 20°C: 111(Ohms).
Descending cable length markings enable easy identification Pair-to-Gruond Capacitance Unbalance: 330(pF/100M).
of remaining cable which reduces installation time and cable Insulation Resistance: >5000MΩ*Km.
scrap. Dielectric strength: DC 2500V 2S.
Color Availability: Additional cable colors available.
Patent products:CN200920124769.9. Order information

Mechanical Characteristics Item Outer Jacket Overall diameter(mm)
D105-25-P CMX 12.5±1.0
Cable under the minimum tension≥400N. D105-25-L LSZH 12.5±1.0
Conductor elongation:≥15%. D105-25-E LDPE 12.5±1.0
Jacket before Aging D105-50-P CMX 17.2±1.0
Tensile Strength≥13.5Mpa D105-50-L LSZH 17.2±1.0
Elongation ≥150%. D105-50-E LDPE 17.2±1.0
Jacket After Aging D105-100-P CMX 23.5±1.0
Tensile Strength ≥12.5Mpa D105-100-L LSZH 23.5±1.0
Elongation ≥125%. D105-100-E LDPE 23.5±1.0

U/UTP unshielded CAT3 Twisted 2 Pair Installation Cable

Copper Conductor
Electrical Characteristics HDPE Insulation
Impedance:1-16MHz 100±15(Ohms). Pair
Rated Temperature: 75°C. Jacket
DC Resistance Unbalance(%): Max 2.5. Rip Cord
DC Resistance 20°C: 111(Ohms).
Pair-to-Gruond Capacitance Unbalance: 330(pF/100M). Conductor
Insulation Resistance: >5000MΩ*Km.
Dielectric strength: DC 2500V 2S. Conductor Solid Bare Copper 24AWG
Insulation HDPE
Total number of
Mechanical Characteristics insulated conductors 4, twisted in 2 pairs
Cable under the minimum tension≥400N. Color code White-Blue/Blue,White-Orange/Orange
Conductor elongation:≥15%. Individual pair shield None
Jacket before Aging Overall shield None
Tensile Strength≥13.5Mpa Drain wire None
Elongation ≥150%.
Jacket After Aging Order information
Tensile Strength ≥12.5Mpa
Elongation ≥125%. Item Outer Jacket Overall diameter(mm)
D106-P CMX 4.3±0.2

www.winlong-tech.com
