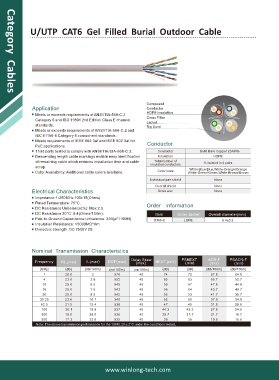

U/UTP CAT6 Gel Filled Burial Outdoor Cable

Category Cables
Compound
Application Conductor
Meets or exceeds requirements of ANSI/TIA-568-C.2 HDPE Insulation
Category 6 and ISO 11801 2nd Edition Class E channel Cross Filler
Jacket
standards. Rip Cord
Meets or exceeds requirements of ANSI/TIA-568-C.2 and
IEC 61156-5 Category 6 component standards.
Meets requirements of IEEE 802.3af and IEEE 802.3at for
PoE applications. Conductor
Third party tested to comply with ANSI/TIA/EIA-568-C.2. Conductor Solid Bare Copper 23AWG
Descending length cable markings enable easy identification Insulation HDPE
of remaining cable which reduces installation time and cable Total number of 8, twisted in 4 pairs
scrap. insulated conductors White-Blue/Blue,White-Orange/Orange
Color Availability: Additional cable colors available. Color code White-Green/Green,White-Brown/Brown
Individual pair shield None
Overall shield None
Electrical Characteristics Drain wire None
Impedance:1-250MHz 100±15(Ohms).
Rated Temperature: 75°C. Order information
DC Resistance Unbalance(%): Max 2.5.
DC Resistance 20°C: 8.4(Ohms/100m). Item Outer Jacket Overall diameter(mm)
Pair-to-Gruond Capacitance Unbalance: 330(pF/100M). D166-E LDPE 6.4±0.2
Insulation Resistance: >5000MΩ*Km.
Dielectric strength: DC 2500V 2S.

Nominal Transmission Characteristics

Frequency RL (min) IL(max) DOP(max) Delay Skew NEXT (min) PSNEXT ACR-F PSACR-F
(min)
(min)
(min)
(max)
(MH)z (dB) (dB/100m) (ns/100m) (ns/100m) (dB) (dB) (dB/100m) (dB/100m)
1 20.0 2 570 45 74 72 67.8 64.8
4 23.0 3.8 552 45 65 63 55.7 52.7
10 25.0 6.0 545 45 59 57 47.8 44.8
16 25.0 7.6 543 45 56 54 43.7 40.7
20 25.0 8.5 542 45 55 53 41.7 38.7
31.25 23.6 10.7 540 45 52 50 37.9 34.9
62.5 21.5 15.4 538 45 47 45 31.8 28.8
100 20.1 19.8 537 45 44.3 42.3 27.8 24.8
200 18.0 29.0 536 45 39.7 37.7 21.7 18.7
250 17.3 32.8 535 45 38 36 19.8 16.8
Note: The above transmission performance for the 100M, 20 ± 2°C under the conditions tested.
