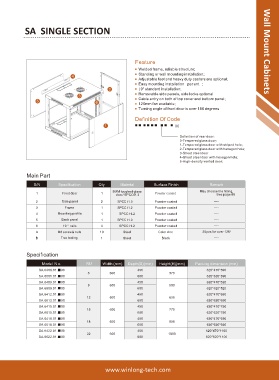

Page 9 - Wall Mount Cabinets

SA SINGLE SECTION

Feature Wall Mount Cabinets
Welded frame, reliable structure;
Standing or wall mounting installation;
Adjustable feet and heavy duty castors are optional;
Easy mounting installation�patent�;
19” standard installation;
Removable side panels, side locks optional
Cable entry on both of top cover and bottom panel;
120mm fan available;
Turning angle of front door is over 180 degrees

Definition Of Code
00

Definition of rear door:
0-Tempered glass door;
1-Tempered glass door with striped hole;
2-Tempered glass door with hexagon hole;
3-Sheet steel door
4-Sheet steel door with hexagon hole;
5-High-density vented door;

Main Part
S/N Specification Qty Material Surface Finish Remark
5MM toughed glass May choose the fitting,
1 Front door 1 door/ SPCCt1.2 Powder coated See page 86
2 Side panel 2 SPCC t1.0 Powder coated ----
3 Frame 1 SPCC t1.2 Powder coated ----
4 Mounting profile 1 SPCC t1.2 Powder coated ----
5 Back panel 1 SPCC t1.0 Powder coated ----
6 19 '' rails 4 SPCC t1.2 Powder coated ----
A M6 screw& nuts 10 Steel Color zinc 20pcs for over 12U
B Trox tooling 1 Steel Black ----

Specification
Model N o. RU Width (mm) Depth(D)(mm) Height(H)(mm) Packing dimension (mm)
SA.6406.01.■00 450 620*470*390
6 600 370
SA.6606.01.■00 600 620*620*390
SA.6409.01.■00 450 620*470*520
9 600 500
SA.6609.01.■00 600 620*620*520
SA.6412.01.■00 450 620*470*650
12 600 635
SA.6612.01.■00 600 620*620*650
SA.6415.01.■00 450 620*470*790
15 600 770
SA.6615.01.■00 600 620*620*790
SA.6418.01.■00 450 620*470*920
18 600 900
SA.6618.01.■00 600 620*620*920
SA.6422.01.■00 450 620*470*1100
22 600 1080
SA.6622.01.■00 600 620*620*1100

www.winlong-tech.com
