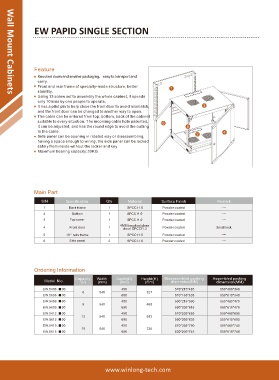

Page 6 - Wall Mount Cabinets

EW PAPID SINGLE SECTION

Feature
Knocked down and smaller packaging，easy to transport and
carry.
Front and rear frame of specially-made structure, better
stability.
Using 13 screw set to assembly the whole cabinet, it spends
Wall Mount Cabinets
only 10mins by one people to operate.
It has a pilot pin to help close the front door to avoid mismatch,
and the front door can be changed to another way to open.
The cable can be entered from top, bottom, back of the cabinet,
suitable to every situation. The incoming cable hole patented,
it can be adjusted, and has the round edge to avoid the cutting
to the cable.
Side panel can be opening in rotated way or disassembling,
having a space enough to wiring, the side panel can be locked
safely from inside without the locker and key.
Maximum bearing capacity:30KG.

Main Part

S/N Specification Qty Material Surface Finish Remark
1 Back frame 1 SPCC t1.0 Powder coated ----
2 Bottom 1 SPCC t1.0 Powder coated ----
3 Top cover 1 SPCC t1.0 Powder coated ----
4MM toughed glass
4 Front door 1 door/ SPCCt1.2 Powder coated Small lock
5 19 '' rails frame 1 SPCC t1.5 Powder coated ----
6 Side panel 2 SPCC t1.0 Powder coated ----

Ordering Information
Capacity Width Depth(D) Height(H) Disassembled packing Assembled packing
Model N o. (U) (mm) (mm) (mm) dimension(MM) dimension(MM)
EW.5406. ■00 450 570*215*485 550*460*340
6 540 327
EW.5606. ■00 600 570*165*635 550*610*340
EW.5409. ■00 450 500*215*590 550*460*470
9 540 460
EW.5609. ■00 600 590*205*615 550*610*470
EW.5412. ■00 450 570*205*655 550*460*605
12 540 593
EW.5612. ■00 600 590*205*635 550*610*605
EW.5415. ■00 450 570*205*790 550*460*740
15 540 725
EW.5615. ■00 600 630*205*745 550*610*740
