Page 3 - Wall Mount Cabinets

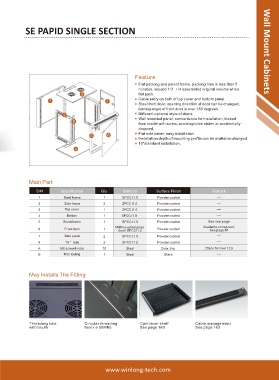

SE PAPID SINGLE SECTION Wall Mount Cabinets

Feature
Flat packing and patent frame, packing time is less than 5
minutes, around 1/3�1/4 assembled original volume when
flat pack.
Cable entry on both of top cover and bottom panel.
Steel front door, opening direction of door can be changed,
turning angle of front door is over 180 degrees.
Different optional style of doors
Wall mounted panel, convenience for installation, locked
from inside with screw, avoiding to be stolen or accidentally
dropped.
Flat side panel, easy installation.
Installation depth of mounting profile can be available changed.
19"standard installation.

Main Part

S/N Specification Qty Material Surface Finish Remark
1 Back frame 1 SPCC t1.0 Powder coated ----
2 Side frame 2 SPCC t1.0 Powder coated ----
3 Top cover 1 SPCC t1.0 Powder coated ----
4 Bottom 1 SPCC t1.0 Powder coated ----
5 Front frame 1 SPCC t1.0 Powder coated See next page
5MM toughed glass Available on request,
6 Front door 1 door/ SPCCt1.2 Powder coated See page 86
7 Side panel 2 SPCC t1.0 Powder coated ----
8 19 '' rails 2 SPCC t1.2 Powder coated ----
A M6 screw& nuts 10 Steel Color zinc 20pcs for over 12U
B Trox tooling 1 Steel Black ----

May Installs The Fitting

Threading hole Circular threading Cantilever shelf Cable management
with brush hole (φ50MM) See page 160 See page 163

www.winlong-tech.com
