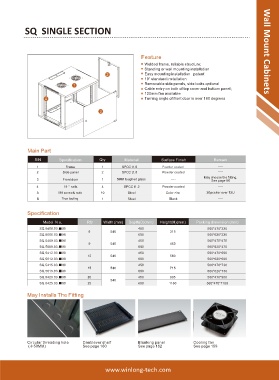

Page 13 - Wall Mount Cabinets

SQ SINGLE SECTION

Feature Wall Mount Cabinets
Welded frame, reliable structure;
Standing or wall mounting installation�
Easy mounting installation�patent��
19” standard installation�
Removable side panels, side locks optional�
Cable entry on both of top cover and bottom panel;
120mm fan available�
Turning angle of front door is over 180 degrees

Main Part

S/N Specification Qty Material Surface Finish Remark
1 Frame 1 SPCC t1.0 Powder coated ----
2 Side panel 2 SPCC t1.0 Powder coated ----
May choose the fitting,
3 Front door 1 5MM toughed glass ---- See page 86
4 19 '' rails 4 SPCC t1.2 Powder coated ----
A M6 screw& nuts 10 Steel Color zinc 20pcs for over 12U
B Trox tooling 1 Steel Black ----

Specification
Model N o. RU Width (mm) Depth(D)(mm) Height(H)(mm) Packing dimension (mm)
SQ.5406.03.■00 450 560*470*330
6 540 315
SQ.5606.03.■00 600 560*620*330
SQ.5409.03.■00 450 560*470*470
9 540 450
SQ.5609.03.■00 600 560*620*470
SQ.5412.03.■00 450 560*470*600
12 540 580
SQ.5612.03.■00 600 560*620*600
SQ.5415.03.■00 450 560*470*730
15 540 715
SQ.5615.03.■00 600 560*620*730
SQ.5420.03.■00 20 450 935 560*470*950
540
SQ.5425.03.■00 25 600 1160 560*470*1180
May Installs The Fitting

Circular threading hole Cantilever shelf Blanking panel Cooling fan
(φ50MM) See page 160 See page 162 See page 159
