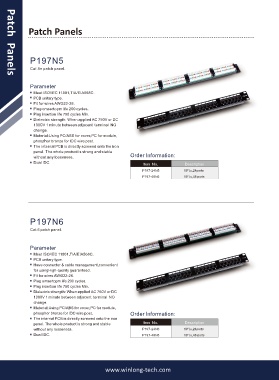

Page 8 - Patch Panel

Patch Panels

P197N5

Cat.5e patch panel.
Patch Panels
Parameter
Meet ISO/IEC 11801,TIA/EIA568C.
PCB unitary type.
Fit for wires AWG22-26.
Plug omsertopm life 200 cycles.
Plug insertion life 750 cycles Min.
Dielectric strength: When applied AC 750V or DC
1000V 1 minute between adjacent terminal NO
change.
Material:Using PC/ABS for cover,PC for module,
phosphor bronze for IDC wire post.
The internal PCB is directly screwed onto the iron
panel. The whole product is strong and stable
without any looseness. Order Information:
Dual IDC. Item No. Description

P197-24N5 19".lu,24ports
P197-48N5 19".lu,48 ports

P197N6

Cat.6 patch panel.

Parameter
Meet ISO/IEC 11801,TIA/EIA568C.
PCB unitary type.
Have connector & cable management,convenient
for usingHigh-quality guaranteed.
Fit for wires AWG22-26.
Plug omsertopm life 200 cycles.
Plug insertion life 750 cycles Min.
Dielectric strength: When applied AC 750V or DC
1000V 1 minute between adjacent terminal NO
change.
Material:Using PC/ABS for cover,PC for module,
phosphor bronze for IDC wire post. Order Information:
The internal PCB is directly screwed onto the iron
panel. The whole product is strong and stable Item No. Description
without any looseness. P197-24N6 19".lu,24ports
Dual IDC. P197-48N6 19".lu,48 ports

www.winlong-tech.com
