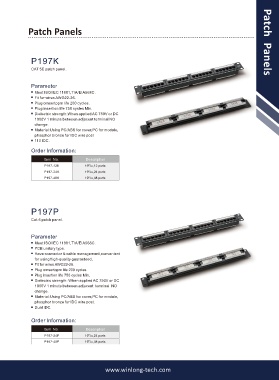

Page 5 - Patch Panel

Patch Panels Patch Panels

P197K

CAT 5E patch panel.

Parameter
Meet ISO/IEC 11801,TIA/EIA568C.
Fit for wires AWG22-26.
Plug omsertopm life 200 cycles.
Plug insertion life 750 cycles Min.
Dielectric strength:When applied AC 750V or DC
1000V 1 minute between adjacent terminal NO
change.
Material:Using PC/ABS for cover,PC for module,
phosphor bronze for IDC wire post
110 IDC.
Order Information:

Item No. Description
P197-12K 19".lu,12 ports
P197-24K 19".lu,24 ports
P197-48K 19".lu,48 ports

P197P

Cat.6 patch panel.

Parameter
Meet ISO/IEC 11801,TIA/EIA568C.
PCB unitary type.
Have connector & cable management,convenient
for usingHigh-quality guaranteed.
Fit for wires AWG22-26.
Plug omsertopm life 200 cycles.
Plug insertion life 750 cycles Min.
Dielectric strength: When applied AC 750V or DC
1000V 1 minute between adjacent terminal NO
change.
Material:Using PC/ABS for cover,PC for module,
phosphor bronze for IDC wire post.
Dual IDC.

Order Information:

Item No. Description
P197-24P 19".lu,24 ports
P197-48P 19".lu,48 ports

www.winlong-tech.com
