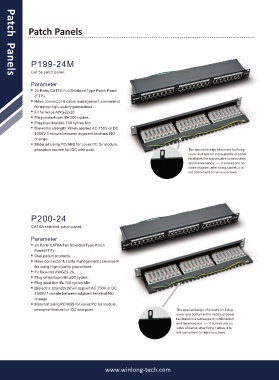

Page 12 - Patch Panel

Patch Panels

P199-24M
Cat.5e patch panel.
Patch Panels
Parameter
24 Ports CAT5E Full Shielded Type Patch Panel
(FTP).
Have connector & cable management,convenient
for using High-quality guaranteed.
Fit for wires AWG22-26.
Plug omsertopm life 200 cycles.
Plug insertion life 750 cycles Min.
Dielectric strength:When applied AC 750V or DC
1000V 1 minute between adjacent terminal NO
change.
Material:Using PC/ABS for cover,PC for module,
phosphor bronze for IDC wire post. The special design of screws for fixing
cover and bottom in the middle of panel
facilitates the subsequent construction
and maintenance. ---- If screws are on
sides of panel, after fixing cables, it is
not convenient to remove screws.

P200-24

CAT 6A shielded patch panel.
Parameter
24 Ports CAT6A Full Shielded Type Patch
Panel(FTP) .
Own patent products.
Have connector & cable management,convenient
for using High-quality guaranteed.
Fit for wires AWG22-26.
Plug omsertopm life 200 cycles.
Plug insertion life 750 cycles Min.
Dielectric strength:When applied AC 750V or DC
1000V 1 minute between adjacent terminal NO
change.
Material:Using PC/ABS for cover,PC for module,
phosphor bronze for IDC wire post. The special design of screws for fixing
cover and bottom in the middle of panel
facilitates the subsequent construction
and maintenance. ---- If screws are on
sides of panel, after fixing cables, it is
not convenient to remove screws.
