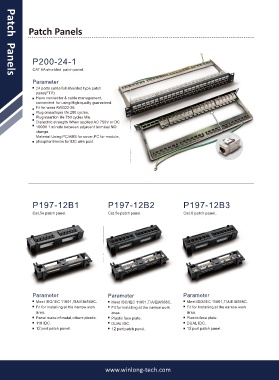

Page 14 - Patch Panel

Patch Panels

P200-24-1

CAT 6A shielded patch panel.
Patch Panels
Parameter
24 ports cat6a full shielded type patch
panel(FTP) .
Have connector & cable management,
convenient for using High-quality guaranteed.
Fit for wires AWG22-26.
Plug omsertopm life 200 cycles.
Plug insertion life 750 cycles Min.
Dielectric strength:When applied AC 750V or DC
1000V 1 minute between adjacent terminal NO
change.
Material:Using PC/ABS for cover,PC for module,
phosphor bronze for IDC wire post.

P197-12B1 P197-12B2 P197-12B3

Cat.5e patch panel. Cat.5e patch panel. Cat.6 patch panel.

Parameter Parameter Parameter
Meet ISO/IEC 11801,TIA/EIA568C. Meet ISO/IEC 11801,TIA/EIA568C. Meet ISO/IEC 11801,TIA/EIA568C.
Fit for Installing at the narrow work Fit for Installing at the narrow work Fit for Installing at the narrow work
area. area. area.
Panel make of metal,others plastic. Plastic face plate. Plastic face plate.
110 IDC. DUAL IDC. DUAL IDC.
12 port patch panel. 12 port patch panel. 12 port patch panel.

www.winlong-tech.com
