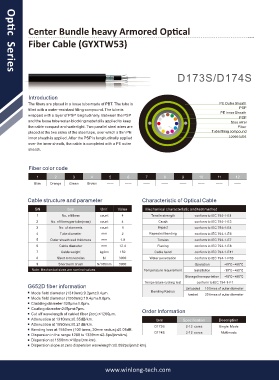

Center Bundle heavy Armored Optical

Fiber Cable (GYXTW53)

D173S/D174S
Optic Series

Introduction
The fibers are placed in a loose tube made of PBT. The tube is PE Outer Sheath
filled with a water-resistant filling compound. The tube is PSP
wrapped with a layer of PSP longitudinally. Between the PSP PE inner Sheath
PSP
and the loose tube water-blocking material is applied to keep Stee wirel
the cable compact and watertight. Two parallel steel wires are Fiber
placed at the two sides of the steel tape, over which a thin PE Tube filling compound
inner sheath is applied. After the PSP is longitudinally applied Loose tube
over the inner sheath, the cable is completed with a PE outer
sheath.

Fiber color code
1 2 3 4 5 6 7 8 9 10 11 12
Blue Orange Green Brown —— —— —— —— —— —— —— ——

Cable structure and parameter Characteristic of Optical Cable

SN Item Unit Value Mechanical characteristic and test method
1 No. of fibers count 4 Tensile strength conform to IEC 794-1-E1
2 No. of fibers per tube(max) count 4 Crush conform to IEC 794-1-E3
3 No. of elements count 1 Impact conform to IEC 794-1-E4
4 Tube diameter mm 2 Repeated bending conform to IEC 794-1-E6
5 Outer sheath wall thickness mm 1.8 Torsion conform to IEC 794-1-E7
6 Cable diameter mm 12.4 Flexing conform to IEC 794-1-E8
7 Cable weight kg/km 150 Cable bend conform to IEC 794-1-E11
8 Short term tension N 3000 Water penetration conform to IEC 794-1-F5B
9 Short term crush N/100mm 3000 Operation -40℃~+60℃
Note: Mechanical sizes are nominal values. Temperature requirement Installation -10℃~+60℃
Storage/transportation -40℃~+60℃
Temperature cycling test conform to IEC 794-1-F1
G652D fiber information Unloaded
10 times of outer diameter
Mode field diameter (1310nm):9.2μm±0.4μm. Bending Radius loaded
20 times of outer diameter
Mode field diameter (1550nm):10.4μm±0.8μm.
Cladding diameter:125μm±1.0μm.
Coating diameter:245μm±7μm. Order Information
Cut off wavelength of cabled fiber ( cc):≤1260μm.
Attenuation at 1310nm:≤0.35dB/km. Item Specification Description
Attenuation at 1550nm:≤0.21dB/km. D173S 2-12 cores Single Mode
Bending loss at 1550nm (100 turns, 30mm radius):≤0.05dB.
Dispersion in the range 1288 to 1339nm:≤3.5ps/(nm km). D174S 2-12 cores Multimode
Dispersion at 1550nm:≤18ps/(nm km).
Dispersion slope at zero dispersion wavelength:≤0.092ps/(nm2 km).
