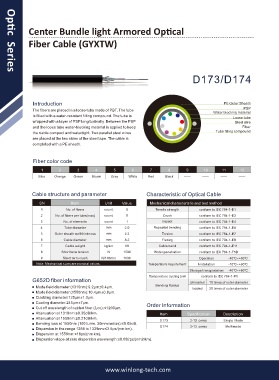

Center Bundle light Armored Optical

Fiber Cable (GYXTW)

Optic Series
D173/D174

Introduction PE Outer Sheath
PSP
The fibers are placed in a loose tube made of PBT. The tube Water blocking material
is filled with a water-resistant filling compound. The tube is Loose tube
wrapped with a layer of PSP longitudinally. Between the PSP Steel wire
and the loose tube water-blocking material is applied to keep Fiber
the cable compact and watertight. Two parallel steel wires Tube filling compound
are placed at the two sides of the steel tape. The cable is
completed with a PE sheath.

Fiber color code
1 2 3 4 5 6 7 8 9 10 11 12
Blue Orange Green Brown Gray White Red Black —— —— —— ——

Cable structure and parameter Characteristic of Optical Cable
SN Item Unit Value Mechanical characteristic and test method
1 No. of fibers count 8 Tensile strength conform to IEC 794-1-E1
2 No. of fibers per tube(max) count 8 Crush conform to IEC 794-1-E3
3 No. of elements count 1 Impact conform to IEC 794-1-E4
4 Tube diameter mm 2.0 Repeated bending conform to IEC 794-1-E6
5 Outer sheath wall thickness mm 2.3 Torsion conform to IEC 794-1-E7
6 Cable diameter mm 8.2 Flexing conform to IEC 794-1-E8
7 Cable weight kg/km 68 Cable bend conform to IEC 794-1-E11
8 Short term tension N 1500 Water penetration conform to IEC 794-1-F5B
9 Short term crush N/100mm 1000 Operation -40℃~+60℃
Note: Mechanical sizes are nominal values. Temperature requirement Installation -10℃~+60℃
Storage/transportation -40℃~+60℃
Temperature cycling test conform to IEC 794-1-F1
G652D fiber information Unloaded
10 times of outer diameter
Mode field diameter (1310nm):9.2μm±0.4μm. Bending Radius loaded
20 times of outer diameter
Mode field diameter (1550nm):10.4μm±0.8μm.
Cladding diameter:125μm±1.0μm.
Coating diameter:245μm±7μm. Order Information
Cut off wavelength of cabled fiber ( cc):≤1260μm.
Attenuation at 1310nm:≤0.35dB/km. Item Specification Description
Attenuation at 1550nm:≤0.21dB/km. D173 2-12 cores Single Mode
Bending loss at 1550nm (100 turns, 30mm radius):≤0.05dB.
Dispersion in the range 1288 to 1339nm:≤3.5ps/(nm km). D174 2-12 cores Multimode
Dispersion at 1550nm:≤18ps/(nm km).
Dispersion slope at zero dispersion wavelength:≤0.092ps/(nm2 km).
