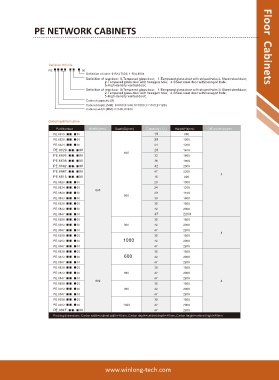

Page 17 - Floor Cabinets

PE NETWORK CABINETS

Definition Of Code Floor Cabinets
PE 00
Definition of color: 0-RAL7035; 1-RAL9004
Definition of rear door: 0-Tempered glass door; 1-Tempered glass door with striped hole;3- Sheet steel door;
2-Tempered glass door with hexagon hole; 4-Sheet steel door with hexagon hole;
5-High-density vented door;
Definition of rear door: 0-Tempered glass door; 1-Tempered glass door with striped hole;3- Sheet steel door;
2-Tempered glass door with hexagon hole; 4-Sheet steel door with hexagon hole;
5-High-density vented door;
Cabinet capacity:(U)
Cabinet depth:(MM): 6=600;8=800;0=1000;1=1100;2=1200
Cabinet width:(MM): 6=600;8=800

Ordering Information
Part Number. Width (mm) Depth(D)(mm) Capacity ( U ) Height(H)(mm) CKD packing parts
PE.6615. ■■. ■00 15 800
PE.6620. ■■. ■00 20 1000
PE.6624. ■■. ■00 24 1200
PE.6629. ■■. ■00 29 1400
600
PE.6633. ■■. ■00 33 1600
PE.6638. ■■. ■00 38 1800
PE.6642. ■■. ■00 42 2000
PE.6647. ■■. ■00 47 2200 3
PE.6815. ■■. ■00 15 800
PE.6820. ■■. ■00 20 1000
PE.6824. ■■. ■00 24 1200
600
PE.6829. ■■. ■00 29 1400
800
PE.6833. ■■. ■00 33 1600
PE.6838. ■■. ■00 38 1800
PE.6842. ■■. ■00 42 2000
PE.6847. ■■. ■00 47 2200
PE.6938. ■■. ■00 38 1800
PE.6942. ■■. ■00 900 42 2000
PE.6947. ■■. ■00 47 2200
3
PE.6038. ■■. ■00 38 1800
PE.6042. ■■. ■00 1000 42 2000
PE.6047. ■■. ■00 47 2200
PE.8638. ■■. ■00 38 1800
PE.8642. ■■. ■00 600 42 2000
PE.8647. ■■. ■00 47 2200
PE.8838. ■■. ■00 38 1800
PE.8842. ■■. ■00 800 42 2000
PE.8847. ■■. ■00 47 2200
800 4
PE.8938. ■■. ■00 38 1800
PE.8942. ■■. ■00 900 42 2000
PE.8947. ■■. ■00 47 2200
PE.8038. ■■. ■00 38 1800
PE.8042. ■■. ■00 1000 42 2000
PE.8047. ■■. ■00 47 2200
Packing dimensions: Carton width=cabinet width+40mm, Carton depth=cabinet depth+40mm, Carton height=cabinet hight+90mm
