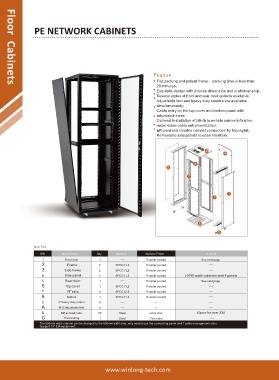

Page 16 - Floor Cabinets

PE NETWORK CABINETS

Feature
Flat packing and patent frame，packing time is less than
20 minutes，
Floor Cabinets
Exquisite design with precise dimension and craftsmanship;
Several styles of front and rear door options available;
Adjustable feet and heavy duty castors are available
simultaneously;
Cable entry on the top cover and bottom panel with
adjustable sizes ;
Optional installation of plinth to enable cabinets fixation,
under-base cable entry/ventilation;
Efficient and reliable cabinet connection by baying kit;
Removable side panels to ease maintain;

Main Part
S/N Specification Qty Material Surface Finish Remark
1 Front door 1 ---- Powder coated See next page
2 Frame 2 SPCC t1.2 Powder coated ----
3 Side frame 2 SPCC t1.2 Powder coated ----
4 Side panel 2 SPCC t1.2 Powder coated ≥1000 width cabinets need 4 panels
5 Rear door 1 ---- Powder coated See next page
6 Top cover 1 SPCC t1.2 Powder coated ----
7 19” rails 4 SPCC t2.0 Powder coated ----
8 Bottom 1 SPCC t1.2 Powder coated ----
9 2” heavy duty castor 4 ---- ---- ----
A M12 adjustable feet 4 ---- v ----
B M6 screw& nuts 20 Steel Color zinc 40pcs for over 33U
C Trox tooling 1 Steel Color zinc ----
The 600mm width cabinet can be changed to the 800mm width one, only need to put the connecting panel and 2 cable management slots.
Support 19” EIA equipment.
