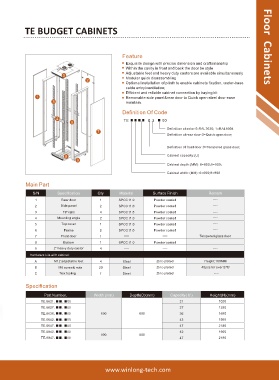

Page 21 - Floor Cabinets

TE BUDGET CABINETS

Feature Floor Cabinets
Exquisite design with precise dimension and craftsmanship�
Within the cavity in front and back the door be style�
Adjustable feet and heavy duty castors are available simultaneously�
Modular quick disassembling�
Optional installation of plinth to enable cabinets fixation, under-base
cable entry/ventilation;
Efficient and reliable cabinet connection by baying kit�
Removable side panel&rear door to Quick open steel door ease
maintain.
Definition Of Code
TE 0 3 00

Definition of color:0-RAL7035; 1=RAL9004
Definition of rear door:3=Quick open door;

Definition of front door:0=Tempered glass door;

Cabinet capacity:(U)
Cabinet depth:(MM): 6=600;8=800;
Cabinet width:(MM): 6=600;8=800

Main Part

S/N Specification Qty Material Surface Finish Remark
1 Rear door 1 SPCC t1.0 Powder coated ----
2 Side panel 2 SPCC t1.0 Powder coated ----
3 19” rails 4 SPCC t1.5 Powder coated ----
4 Mounting angle 2 SPCC t1.0 Powder coated ----
5 Top cover 1 SPCC t1.0 Powder coated ----
6 Frame 2 SPCC t1.0 Powder coated ----
7 Front door 1 ---- ---- Tempered glass door
8 Bottom 1 SPCC t1.0 Powder coated
9 2” heavy duty castor 4 ---- ---- ----
hardware kits with cabinet:
A M12 adjustable feet 4 Steel Zinc-plated Height:100MM
B M6 screw& nuts 20 Steel Zinc-plated 40pcs for over 27U
C Trox tooling 1 Steel Zinc-plated ----

Specification

Part Number. Width (mm) Depth(D)(mm) Capacity( U ) Height(H)(mm)
TE.6621. ■■. ■00 21 1020
TE.6627. ■■. ■00 27 1290
TE.6636. ■■. ■00 600 600 36 1690
TE.6642. ■■. ■00 42 1955
TE.6647. ■■. ■00 47 2180
TE.8842. ■■. ■00 42 1955
800 800
TE.8847. ■■. ■00 47 2180
