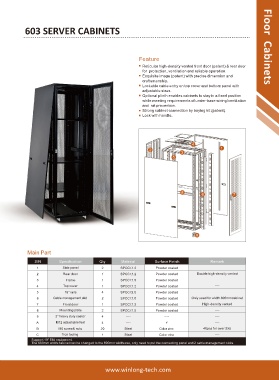

Page 13 - Floor Cabinets

603 SERVER CABINETS

Feature Floor Cabinets
Reticular high-density vented front door (patent) & rear door
for protection, ventilation and reliable operation.
Exquisite image (patent) with precise dimension and
craftsmanship.
Lockable cable entry on top cover and bottom panel with
adjustable sizes.
Optional plinth enables cabinets to stay in a fixed position
while meeting requirements of under-base wiring/ventilation
and rat prevention.
Strong cabinet connection by baying kit (patent).
Lock with handle.

Main Part

S/N Specification Qty Material Surface Finish Remark
1 Side panel 2 SPCC t1.2 Powder coated
2 Rear door 1 SPCC t1.2 Powder coated Double high-density vented
3 Frame 1 SPCC t1.5 Powder coated
4 Top cover 1 SPCC t1.2 Powder coated ----
5 19” rails 4 SPCC t2.0 Powder coated
6 Cable management slot 2 SPCC t1.0 Powder coated Only used for width 800mmcabinet
7 Front door 1 SPCC t1.2 Powder coated High-density vented
8 Mounting plate 2 SPCC t1.5 Powder coated ----
9 2” heavy duty castor 4 ---- ---- ----
A M12 adjustable feet 4 ---- v ----
B M6 screw& nuts 20 Steel Color zinc 40pcs for over 33U
C Trox tooling 1 Steel Color zinc ----
Support 19” EIA equipment.
The 600mm width cabinet can be changed to the 800mm width one, only need to put the connecting panel and 2 cable management slots.
