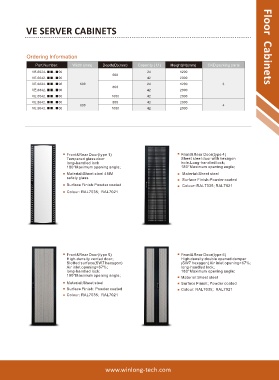

Page 5 - Floor Cabinets
P. 5
VE SERVER CABINETS
Ordering Information Floor Cabinets
Part Number. Width (mm) Depth(D)(mm) Capacity ( U ) Height(H)(mm) CKD packing parts
VE.6624. ■■. ■00 24 1200
600
VE.6642. ■■. ■00 42 2000
VE.6824. ■■. ■00 600 24 1200 3
800
VE.6842. ■■. ■00 42 2000
VE.6042. ■■. ■00 1000 42 2000
VE.8842. ■■. ■00 800 42 2000
800 4
VE.8042. ■■. ■00 1000 42 2000
Front&Rear Door(type 1) Front&Rear Door(type 4)
Tempered glass door Sheet steel door with hexagon
long-handled lock hole.Long-handled lock;
180°Maximum opening angle; 180°Maximum opening angle;
Material:Sheet steel 4MM Material:Sheet steel
safety glass Surface Finish:Powder coated
Surface Finish:Powder coated Colour: RAL7035; RAL7021
Colour: RAL7035; RAL7021
Front&Rear Door(type 5) Front&Rear Door(type 6)
High-density vented door; High density double opened damper
Slotted surface(SW7 hexagon) (SW7 hexagon) Air inlet opening>67%;
Air inlet opening>67%; long-handled lock;
long-handled lock; 180°Maximum opening angle;
180°Maximum opening angle; Material:Sheet steel
Material:Sheet steel Surface Finish; Powder coated
Surface Finish: Powder coated Colour: RAL7035; RAL7021
Colour: RAL7035; RAL7021
