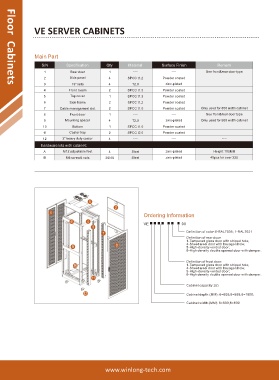

Page 4 - Floor Cabinets
P. 4
VE SERVER CABINETS
Main Part
S/N Specification Qty Material Surface Finish Remark
1 Rear door 1 ---- ---- See front&rear door type
2 Side panel 4 SPCC t1.2 Powder coated
3 19” rails 4 T2.0 zinc-plated
Floor Cabinets
4 Front beam 2 SPCC t1.5 Powder coated
5 Top cover 1 SPCC t1.2 Powder coated
6 Side frame 2 SPCC t1.2 Powder coated
7 Cable management slot 2 SPCC t1.0 Powder coated Only used for 800 width cabinet
8 Front door 1 ---- ---- See front&rear door type
9 Mounting spacer 4 T2.0 zinc-plated Only used for 800 width cabinet
10 Bottom 1 SPCC t1.0 Powder coated
11 Caster tray 2 SPCC t2.0 Powder coated
12 2” heavy duty castor 4 ---- ---- ----
hardware kits with cabinet:
A M12 adjustable feet 4 Steel zinc-plated Height:100MM
B M6 screw& nuts 20/40 Steel zinc-plated 40pcs for over 33U
Ordering Information
VE 00
Definition of color:0-RAL7035; 1-RAL7021
Definition of rear door:
1-Tempered glass door with striped hole;
4-Sheet sreel door with hexagon hole;
5-High-density vented door;
6-High density double opened door with damper.
Definition of front door:
1-Tempered glass door with striped hole;
4-Sheet sreel door with hexagon hole;
5-High-density vented door;
6-High density double opened door with damper.
Cabinet capacity:(U)
Cabinet depth:(MM): 6=600;8=800;0=1000;
Cabinet width:(MM): 6=600;8=800
