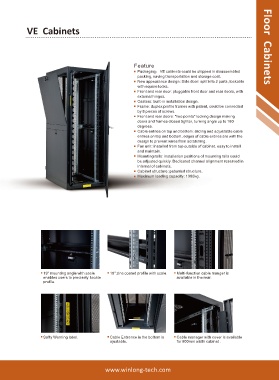

VE Cabinets Floor Cabinets

Feature
Packaging：VE cabinets could be shipped in disassembled
packing, saving transportation and storage cost.
New appearance design :Side door: split into 2 parts, lockable
with square locks.
Front and rear door: pluggable front door and rear doors, with
external hinges.
Casters: built-in installation design.
Frame: duplex profile frames with patent, could be connected
by 8 pieces of screws.
Front and rear doors: "two points" locking design making
doors and frames closed tighter, turning angle up to 180
degrees.
Cable entries on top and bottom: sliding and adjustable cable
entries on top and bottom, edges of cable entries are with the
design to prevent wires from scratching.
Fan unit: installed from top outside of cabinet, easy to install
and maintain.
Mounting rails: installation positions of mounting rails could
be adjusted quickly. Dedicated channel alignment reserved in
internal of cabinets.
Cabinet structure: patented structure.
Maximum loading capacity: 1300kg.

19” mounting angle with sacle 19” zinc coated profile with scale. Multi-function cable manger is
enables users to precisely locate available in the rear.
profile.

Safty Warning label. Cable Entrence in the bottom is Cable manager with cover is available
ajustable. for 800mm width cabinet .
