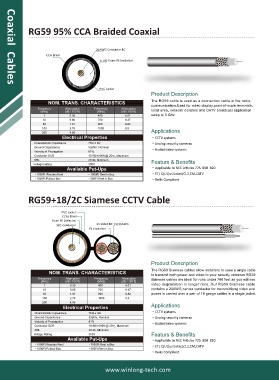

Page 4 - Coaxial Cables

RG59 95% CCA Braided Coaxial

20AWG Conductor BC
CCA Braid
0.145′′Foam PE Insulation

Coaxial Cables
PVC Jacket
Product Description
NOM. TRANS. CHARACTERISTICS The RG59 cable is used as a connection cable in the radio-
communication.Used for video display,point-of-scale terminals,
Frequency Attenuation Frequency Attenuation local area, network controls and CATV broadcast application
(MHz) (dB / 100 ft) (MHz) (dB / 100 ft)
1 0.30 400 6.01 swep to 3 Ghz.
10 0.86 700 8.47
50 1.91 900 9.82
100 2.78 1000 9.9
200 4.06 Applications
Electrical Properties ·CCTV systems
Characteristic Impedance 75Ω ± 3Ω ·Analog security cameras
Ground Capacitance 53pf/m, Nominal
Velocity of Propagation 81% ·Audio/video systems
Conductor DCR 10.9Ω/1000ft @ 20℃, Maximum
SRL 20 db, Minimum Featurs & Benefits
Voltage Rating 300V
Available Put-Ups ·Applicable to NEC Articles 725 800 820
·1000Ft Wooden Reel ·1000Ft Reel in Box ·ETL C(UL)us Listed,CL2,CM,CATV
·1000Ft Pullout-Box ·500Ft Reel in Box ·RoHs Compliant

RG59+18/2C Siamese CCTV Cable

PVC Jacket
CCAL Braid
Foam PE Dielectric
SBC Conductor Stranded BC 19/30AWG
PE Insulation

Product Description

NOM. TRANS. CHARACTERISTICS The RG59 Siamese cables allow installers to usee a single cable
to transmit both power and video to your security cameras.RG59
Frequency Attenuation Frequency Attenuation Siamese cables are ideal for runs under 700 feet as you will see
(MHz) (dB / 100 ft) (MHz) (dB / 100 ft)
1 0.30 400 6.01 video degradation in longer runs. Our RG59 Siamese cable
10 0.86 700 8.47 contains a 20AWG center conductor for transmittiong video and
50 1.91 900 9.82 power is carried over a pair of 18 gauge cables in a single jacket.
100 2.78 1000 9.9
200 4.06
Electrical Properties Applications
·CCTV systems
Characteristic Impedance 75Ω ± 3Ω
Ground Capacitance 53pf/m, Nominal ·Analog security cameras
Velocity of Propagation 81% ·Audio/video systems
Conductor DCR 10.9Ω/1000ft @ 20℃, Maximum
SRL 20 db, Minimum
Voltage Rating 300V Featurs & Benefits
Available Put-Ups ·Applicable to NEC Articles 725 800 820
·1000Ft Wooden Reel ·1000Ft Reel in Box ·ETL C(UL)us Listed,CL2,CM,CATV
·1000Ft Pullout-Box ·500Ft Reel in Box
·RoHs Compliant
