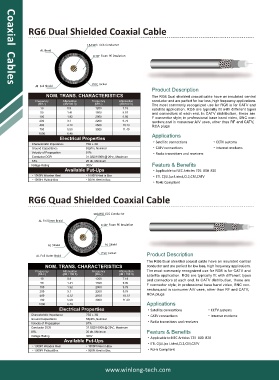

Page 2 - Coaxial Cables

RG6 Dual Shielded Coaxial Cable

18AWG CCS Conductor
AL Braid
0.18′′ Foam PE Insulation

PVC Jacket
AL Foil Shield
Coaxial Cables
Product Description
NOM. TRANS. CHARACTERISTICS The RG6 Dual shielded coaxial cable have an insulated central
Frequency Attenuation Frequency Attenuation conductor and are perfect for low loss, high frequency applications.
(MHz) (dB/100 ft) (MHz) (dB/100 ft) The most commonly recognized use for RG6 is for CATV and
10 0.8 1200 7.18 satellite application. RG6 are typically fit with different types
50 1.41 1500 8.10 and connectors at each end. In CATV distribution, these are
100 1.92 2000 9.50 F connector style; in professional base band video, BNC con-
200 3.1 2200 9.79 nectors;and in consumer A/V uses, other than RF and CATV,
400 4.12 2500 10.13 RCA plugs
700 5.50 3000 11.40
1000 6.48 Applications
Electrical Properties
Characteristic Impedance 75Ω ± 3Ω ·Satellite connections ·CCTV systems
Ground Capacitance 53pf/m, Nominal ·CATV connections ·Internet modems
Velocity of Propagation 81% ·Radio tranmitters and receivers
Conductor DCR 31.02Ω/1000ft @ 20℃, Maximum
SRL 20 db, Minimum
Voltage Rating 300V Featurs & Benefits
Available Put-Ups ·Applicable to NEC Articles 725 800 820
·1000Ft Wooden Reel ·1000Ft Reel in Box ·ETL C(UL)us Listed,CL2,CM,CATV
·1000Ft Pullout-Box ·500Ft Reel in Box
·RoHs Compliant

RG6 Quad Shielded Coaxial Cable

18AWG CCS Conductor
AL Foil Inner Braid
0.18′′ Foam PE Insulation

AL Shield AL Shield
PVC Jacket Product Description
AL Foil Outer Braid
The RG6 Dual shielded coaxial cable have an insulated central
NOM. TRANS. CHARACTERISTICS conductor and are perfect for low loss, high frequency applications.
Frequency Attenuation Frequency Attenuation The most commonly recognized use for RG6 is for CATV and
(MHz) (dB / 100 ft) (MHz) (dB / 100 ft) satellite application. RG6 are typically fit with different types
10 0.8 1200 7.18 and connectors at each end. In CATV distribution, these are
50 1.41 1500 9.30 F connector style; in professional base band video, BNC con-
100 1.92 2000 9.76 nectors;and in consumer A/V uses, other than RF and CATV,
200 3.1 2200 9.79
400 4.12 2500 10.13 RCA plugs
700 5.50 3000 11.40
1000 6.48 Applications
Electrical Properties ·Satellite connections ·CCTV systems
Characteristic Impedance 75Ω ± 3Ω ·CATV connections ·Internet modems
Ground Capacitance 53pf/m, Nominal
Velocity of Propagation 81% ·Radio tranmitters and receivers
Conductor DCR 31.02Ω/1000ft @ 20℃, Maximum
SRL 20 db, Minimum Featurs & Benefits
Voltage Rating 300V ·Applicable to NEC Articles 725 800 820
Available Put-Ups
·1000Ft Wooden Reel ·1000Ft Reel in Box ·ETL C(UL)us Listed,CL2,CM,CATV
·1000Ft Pullout-Box ·500Ft Reel in Box ·RoHs Compliant
