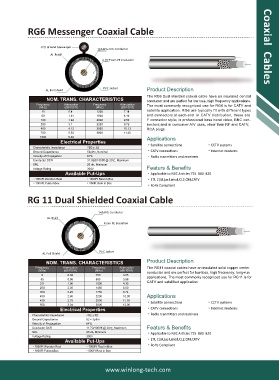

Page 3 - Coaxial Cables

RG6 Messenger Coaxial Cable

CCS Ground Messeager Coaxial Cables
18AWG CCS Conductor
AL Braid
0.18′′Foam PE Insulation

PVC Jacket
AL Foil Shield Product Description
The RG6 Dual shielded coaxial cable have an insulated central
NOM. TRANS. CHARACTERISTICS conductor and are perfect for low loss, high frequency applications.
Frequency Attenuation Frequency Attenuation The most commonly recognized use for RG6 is for CATV and
(MHz) (dB/100 ft) (MHz) (dB/100 ft)
10 0.8 1200 7.18 satellite application. RG6 are typically fit with different types
50 1.41 1500 8.10 and connectors at each end. In CATV distribution, these are
100 1.92 2000 9.50 F connector style; in professional base band video, BNC con-
200 3.1 2200 9.79 nectors;and in consumer A/V uses, other than RF and CATV,
400 4.12 2500 10.13 RCA plugs
700 5.50 3000 11.40
1000 6.48 Applications
Electrical Properties
Characteristic Impedance 75Ω ± 3Ω ·Satellite connections ·CCTV systems
Ground Capacitance 53pf/m, Nominal ·CATV connections ·Internet modems
Velocity of Propagation 81% ·Radio tranmitters and receivers
Conductor DCR 31.02Ω/1000ft @ 20℃, Maximum
SRL 20 db, Minimum
Voltage Rating 300V Featurs & Benefits
Available Put-Ups ·Applicable to NEC Articles 725 800 820
·1000Ft Wooden Reel ·1000Ft Reel in Box ·ETL C(UL)us Listed,CL2,CM,CATV
·1000Ft Pullout-Box ·500Ft Reel in Box
·RoHs Compliant
RG 11 Dual Shielded Coaxial Cable

14AWG Conductor
AL Braid
Foam PE Insulation

PVC Jacket
AL Foil Shield
NOM. TRANS. CHARACTERISTICS Product Description
Frequency Attenuation Frequency Attenuation The RG11 coaxial cables have an insulated solid copper center
(MHz) (dB/100 ft) (MHz) (dB/100 ft) conductor and are perfect for low loss, high frequency, long-run
5 0.38 750 3.65 applications. The most commonly recognized use for RG11 is for
55 0.96 865 3.98
211 1.90 1000 4.35 CATV and satellited application
250 2.05 1450 8.00
300 2.25 1750 8.74
400 2.60 2250 10.00 Applications
450 2.75 2500 11.10 ·Satellite connections ·CCTV systems
550 3.04 3000 12.00
Electrical Properties ·CATV connections ·Internet modems
Characteristic Impedance 75Ω ± 3Ω ·Radio tranmitters and receivers
Ground Capacitance 52 ± 3pf/m
Velocity of Propagation 84%
Conductor DCR 11.7Ω/1000ft @ 20℃, Maximum Featurs & Benefits
SRL 20 db, Minimum ·Applicable to NEC Articles 725 800 820
Voltage Rating 300V
Available Put-Ups ·ETL C(UL)us Listed,CL2,CM,CATV
·1000Ft Wooden Reel ·1000Ft Reel in Box ·RoHs Compliant
·1000Ft Pullout-Box ·500Ft Reel in Box

www.winlong-tech.com
