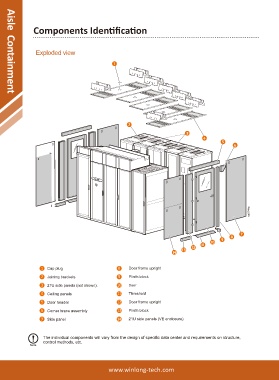

Components Identification





                Exploded view










    Aisle  Containment











































                  1  Cap plug                      8    Door frame upright

                  2  Joining brackets              9    Plinth block
                  3  21U side panels (not shown).  10   Door
                  4  Ceiling panels                11   Threshold

                  5  Door header                   12   Door frame upright
                  6  Corner brace assembly         13   Plinth block
                  7  Side panel                    14   21U side panels (VE enclosure)



                   The individual components will vary from the design of specific data center and requirements on structure,
                   control methods, etc.
