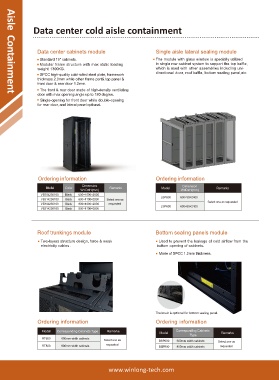

Data center cold aisle containment

Data center cabinets module Single aisle lateral sealing module
Standard 19" cabinets. The module with glass window is specially utilized
Modular frame structure with max static loading in single row cabinet system to support the top baffle,
weight 1300KG. which is used with other assemblies including uni-
SPCC high-quality cold-rolled steel plate, framework directional door, roof baffle, bottom sealing panel,etc.
thickness 2.0mm while other frame part& top panel &
front door & rear door 1.2mm.

The front & rear door made of high-density ventilating
door with max opening angle up to 180 degree.
Aisle Containment
Single-opening for front door while double-opening
for rear door, and lateral panel optional.

Ordering information Ordering information

Dimension Dimension
Model Color Remarks Model Remarks
W×D×H(mm) WxDxH(mm)
VE604256100 Black 600×1000×2000 LSP600 600×50×2400
VE614256100 Black 600×1100×2000 Select one as Select one as requested
VE804256100 Black 800×1000×2000 requested
VE814256100 Black 800×1100×2000 LSP800 800×50×2400

Roof trunkings module Bottom sealing panels module
Two-layers structure design, force & weak Used to prevent the leakage of cold airflow from the
electricity cables . bottom opening of cabinets.
Made of SPCC 1.2mm thickness.

The brush is optional for bottom sealing panel.
Ordering information Ordering information

Model Corresponding Cabinets Type Remarks Corresponding Cabinets
Model Remarks
Type
RT600 600mm width cabinets Select one as BSP600 600mm width cabinets Select one as
RT800 800mm width cabinets requested BSP800 800mm width cabinets requested
