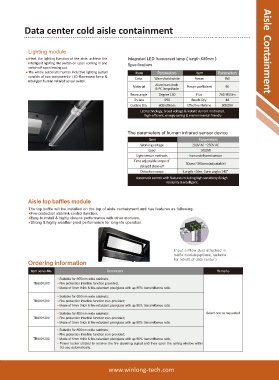

Page 3 - Aisle Containment

Data center cold aisle containment

Lighting module Aisle Containment
Meet the lighting function of the aisle, achieve the Integrated LED fluorescent lamp（length:600mm）
intelligent lighting like switch-on upon coming in and Specifications
switch-off upon leaving out.
The whole automatic human inductive lighting system Item Parameters Item Parameters
consists of two components- LED fluorescent lamp & Color Warm/cold white Power 9W
intelligent human infrared sensor switch.
Material Aluminum dock Power coefficient 90
& PC lampshade
Beam angle Degree 150 Flux 765~855lm
IP class IP20 Beads Qty. 48
Outline Dia. 600×20mm Effective lifetime 50000H
LED technology, broad voltage & instant current motivated,
high-efficient, energy-saving & environmental friendly

The parameters of human infrared sensor device
Item Parameters
Working voltage 200V AC ~250V AC
Load 1000W
Light-sensor methods human infrared sensor
Time adjustable scope of 30secs~300secs(adjustable)
delayed close-off
Detection scope Length <10m, Cone angle: 140°
Automatic control with features including high sensitivity & high
reliability & intelligent

Aisle top baffles module
The top baffle will be installed on the top of aisle containment and has features as following.
Fire-protection interlink control function.
Easy to install & highly closure performance with other modules.
Strong & highly weather-proof performance for long-life operation.

Input airflow duct attached in
baffle module(optional, suitable
for retrofit of data center )
Ordering information
Item series No. Parameters Remarks

● Suitable for 600mm wide cabinets;
TB6001200 ● Fire protection interlink function provided;
● Made of 5mm thick & fire-retardant plexiglass with up 90% transmittance ratio.
● Suitable for 600mm wide cabinets;
TB6001200 ● Fire protection interlink function non-provided;
● Made of 5mm thick & fire-retardant plexiglass with up 90% transmittance ratio.
● Suitable for 800mm wide cabinets; Select one as requested
TB8001200 ● Fire protection interlink function non-provided;
● Made of 5mm thick & fire-retardant plexiglass with up 90% transmittance ratio.
● Suitable for 800mm wide cabinets;
● Fire protection interlink function non-provided;
TB8001200 ● Made of 5mm thick & fire-retardant plexiglass with up 90% transmittance ratio;
● Power locker utilized to receive the fire alarming signal and then open the ceiling window within
0.5 sec automatically.
