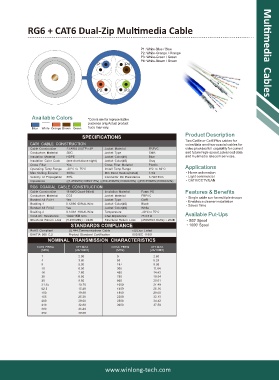

RG6 + CAT6 Dual-Zip Multimedia Cable

P1: White-Blue / Blue
P2: White-Orange / Orange Multimedia Cables
P3: White-Green / Green
P4: White-Brown / Brown
P1 P4

P2 P3

Available Colors *Colors are for representative
purposes only.Actual product
Blue White Orange Brown Green hues may vary.
Product Description
SPECIFICATIONS
Two Cat5e or Cat6 Plus cables for
CAT6 CABLE CONSTRUCTION voice/data amd two coaxial cables for
Cable Construction 23 AWG U/UTP x 4P Jacket Material FRPVC video provides full capability for current
Conductors Material SBC Jacket Type CMR and future high-speed,advanced data
Insulation Material HDPE Jacket Color(#1) Blue and mutimedia telecom services.
Insulation Color Code (see chart above night) Jacket Color(#3) Gray
Cross Filler Yes Cross Filler Material Plastic
Operating Temp.Range -20°C to 75°C Install Temp.Range 0°C to 60°C Applications
Max Oulling Tension 30 Ibs Min Bend Radius(install) 1.5in ·Home automation
Velocity of Propagation 60% Conductor DC Resistance 6.7Ω/100m ·Light commercial
Impedence ((1-250MHz)100Ω±15%) ((250-450MHz)100Ω±20%) ((450-550MHz)100Ω±22%) ·CATV/CCTV/LAN
RG6 COAXIAL CABLE CONSTRUCTION
Cable Construction 18 AWG Quad-Shield Insulation Material Foam PE Features & Benefits
Conductors Material CCS Jacket Material FRPVC ·Single cable run for multiple droops
Bonded AJ Foil-1 Yes Jacket Type CMR ·Enables a cleaner installation
Braiding-1 0.12/80 60%AI-Wire Jacket Color(#2) Black ·Saves Time
Bonded AJ Foil-2 Yes Jacket Color(#4) White
Braiding-2 0.12/64 40%AI-Wire Temperature -20°C to 75°C
Cond.DC Resistance 102Ω/1KM nom Char.Impedence 75 ± 3 Ω Available Put-Ups
Structural Rerurn Loss (5-450 MHz) ģ22dB Structural Return Loss (450MHz3.0GHz) ģ20dB ·500’ Spool
STANDARDS COMPLIANCE ·1000’ Spool
RoHS Compliant UL 444,Communications Cable c(UL)us Listed
EIA/TIA 568 C,2 Product Standard Certiflcation ISO/IEC 11801
NOMINAL TRANSMISSION CHARACTERISTICS
CAT6 FREQ ATT.MAX COAX FREQ ATT.MAX
(MHz) (db/100Ft) (MHz) (db/100Ft)
1 2.00 5 2.60
4 3.80 55 5.25
8 5.30 187 9.35
10 6.00 300 11.64
16 7.60 450 14.43
20 8.50 750 18.54
25 9.50 865 20.01
31.25 10.70 1000 21.49
62.5 15.40 1450 26.16
100 19.80 1800 29.08
155 25.20 2200 32.13
200 29.00 2500 34.42
240 32.80 3000 37.50
300 36.40
350 39.80
