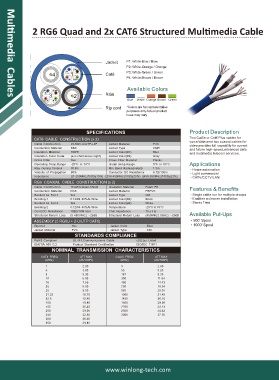

2 RG6 Quad and 2x CAT6 Structured Multimedia Cable

Jacket P1: White-Blue / Blue
P2: White-Orange / Orange
P1 P4
4 1 Cat6 P3: White-Green / Green
P2 P3 P4: White-Brown / Brown
Available Colors
P1 P4
3 2 RG6
Multimedia Cables
P2 P3 Blue White Orange Brown Green
Rip cord *Colors are for representative
purposes only.Actual product
hues may vary.

SPECIFICATIONS Product Description
CAT6 CABLE CONSTRUCTION (x 2) Two Cat5e or Cat6 Plus cables for
voice/data amd two coaxial cables for
Cable Construction 23 AWG U/UTP x 4P Jacket Material PVC video provides full capability for current
Conductors Material SBC Jacket Type CMR and future high-speed,advanced data
Insulation Material HDPE Jacket Color(#1) Blue and mutimedia telecom services.
Insulation Color Code (see chart above night) Jacket Color(#3) Gray
Cross Filler Yes Cross Filler Material Plastic
Operating Temp.Range -20°C to 75°C Install Temp.Range 0°C to 60°C Applications
Max Oulling Tension 30 Ibs Min Bend Radius(install) 1.5in ·Home automation
Velocity of Propagation 60% Conductor DC Resistance 6.7Ω/100m ·Light commercial
Impedence ((1-250MHz)100Ω±15%) ((250-450MHz)100Ω±20%) ((450-550MHz)100Ω±22%) ·CATV/CCTV/LAN
RG6 COAXIAL CABLE CONSTRUCTION (x 2)
Cable Construction 18 AWG Quad-Shield Insulation Material Foam PE Features & Benefits
Conductors Material CCS Jacket Material FRPVC
Bonded AJ Foil-1 Yes Jacket Type CM ·Single cable run for multiple droops
Braiding-1 0.12/80 60%AI-Wire Jacket Color(#2) Black ·Enables a cleaner installation
Bonded AJ Foil-2 Yes Jacket Color(#4) White ·Saves Time
Braiding-2 0.12/64 40%AI-Wire Temperature -20°C to 75°C
Cond.DC Resistance 102Ω/1KM nom Char.Impedence 75 ± 3 Ω
Structural Rerurn Loss (5-450 MHz) ģ22dB Structural Return Loss (450MHz3.0GHz) ģ20dB Available Put-Ups
ASSEMBLY (2 RG6U + 2 U/UTP CAT6) ·500’ Spool
Ripcord Yes Jacket Color Blue ·1000’ Spool
Jacket Material PVC Jacket Type CM
STANDARDS COMPLIANCE
RoHS Compliant UL 444,Communications Cable c(UL)us Listed
EIA/TIA 568 C,2 Product Standard Certiflcation ISO/IEC 11801
NOMINAL TRANSMISSION CHARACTERISTICS
CAT6 FREQ ATT.MAX COAX FREQ ATT.MAX
(MHz) (db/100Ft) (MHz) (db/100Ft)
1 2.00 5 2.60
4 3.80 55 5.25
8 5.30 187 9.35
10 6.00 300 11.64
16 7.60 450 14.43
20 8.50 750 18.54
25 9.50 865 20.01
31.25 10.70 1000 21.49
62.5 15.40 1450 26.16
100 19.80 1800 29.08
155 25.20 2200 32.13
200 29.00 2500 34.42
240 32.80 3000 37.50
300 36.40
350 39.80
