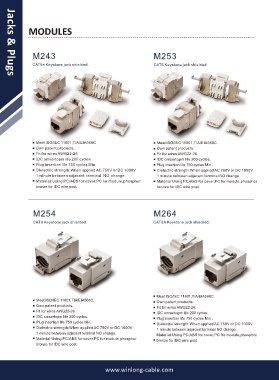

Page 4 - Jack & Plugs

MODULES

M243 M253

CAT5e Keystone jack shielded. CAT6 Keystone jack shielded.

Jacks & Plugs

Meet ISO/IEC 11801,TIA/EIA568C Meet ISO/IEC 11801,TIA/EIA568C.
Own patent products. Own patent products.
Fit for wires AWG22-26 Fit for wires AWG22-26.
IDC omsertopm life 200 cycles IDC omsertopm life 200 cycles.
Plug insertion life 750 cycles Min Plug insertion life 750 cycles Min .
Dielectric strength:When applied AC 750V or DC 1000V Dielectric strength:When applied AC 750V or DC 1000V
1 minute between adjacent terminal NO change 1 minute between adjacent terminal NO change.
Material:Using PC/ABS for cover,PC for module,phosphor Material:Using PC/ABS for cover,PC for module,phosphor
bronze for IDC wire post. bronze for IDC wire post.

M254 M264

CAT6 Keystone jack shielded. CAT6A Keystone jack shielded.

Meet ISO/IEC 11801,TIA/EIA568C.
Meet ISO/IEC 11801,TIA/EIA568C. Own patent products.
Own patent products. Fit for wires AWG22-26.
Fit for wires AWG22-26. IDC omsertopm life 200 cycles.
IDC omsertopm life 200 cycles. Plug insertion life 750 cycles Min .
Plug insertion life 750 cycles Min. Dielectric strength:When applied AC 750V or DC 1000V
Dielectric strength:When applied AC 750V or DC 1000V 1 minute between adjacent terminal NO change.
1 minute between adjacent terminal NO change. Material:Using PC/ABS for cover,PC for module,phosphor
Material:Using PC/ABS for cover,PC for module,phosphor bronze for IDC wire post.
bronze for IDC wire post.
