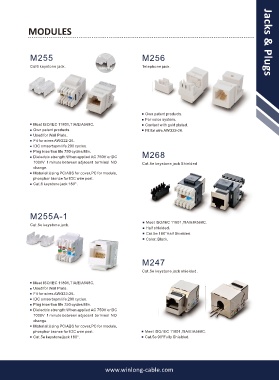

Page 3 - Jack & Plugs

MODULES Jacks & Plugs

M255 M256

Cat6 keystone jack. Crimping Telephone jack.

Own patent products.
For voice system.
Meet ISO/IEC 11801,TIA/EIA568C. Contact with gold plated
Own patent products. Fit for wire AWG22-26 .
Used for Wall Plate.
Fit for wires AWG22-26.
IDC omsertopm life 200 cycles.
Plug insertion life 750 cycles Min.
Dielectric strength:When applied AC 750V or DC M268
1000V 1 minute between adjacent terminal NO Cat.5e keystone jack Shielded
change.
Material:Using PC/ABS for cover,PC for module,
phosphor bronze for IDC wire post.
Cat.6 keystone jack 180°.

M255A-1
Meet ISO/IEC 11801,TIA/EIA568C.
Cat.5e keystone jack.
Half shlelded.
Cat.5e 180°Half Shielded.
Color: Black.

M247

Cat.5e keystone jack shielded.

Meet ISO/IEC 11801,TIA/EIA568C.
Used for Wall Plate.
Fit for wires AWG22-26.
IDC omsertopm life 200 cycles.
Plug insertion life 750 cycles Min.
Dielectric strength:When applied AC 750V or DC
1000V 1 minute between adjacent terminal NO
change.
Material:Using PC/ABS for cover,PC for module,
phosphor bronze for IDC wire post. Meet ISO/IEC 11801,TIA/EIA568C.
Cat.5e keystone jack 180°. Cat.5e 90°Fully Shielded.
