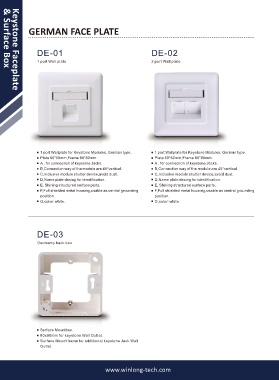

Page 20 - Keystone Faceplate & Surface Box

GERMAN FACE PLATE

DE-01 DE-02

1 port Wall plate 2 port Wall plate
& Surface Box

Keystone Faceplate

1 port Wallplate for Keystone Modules, German type. 1 port Wallplate for Keystone Modules, German type.
Plate 50*50mm,Frame 80*80mm. Plate 50*50mm,Frame 80*80mm.
A , for connection of keystone Jacks. A , for connection of keystone Jacks.
B,Connection way of the module are 45°vertical. B,Connection way of the module are 45°vertical.
C,Inclusive module shutter device,avoid dust. C,Inclusive module shutter device,avoid dust.
D,Name plate desing for identification. D,Name plate desing for identification.
E, Shining structured surface parts. E, Shining structured surface parts.
F,Full shielded metal housing,usable as central grounding F,Full shielded metal housing,usable as central grounding
position. position.
G,color: white. G,color: white.

DE-03

Germamy back box

Surface Mountbox.
80x80mm for keystone Wall Outlet.
Surface Mount frame for additional keystone Jack Wall
Outlet.

www.winlong-tech.com
