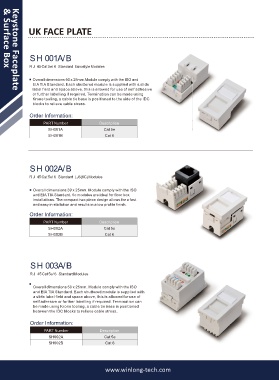

Page 16 - Keystone Faceplate & Surface Box

UK FACE PLATE

SH 001A/B

R J 45 Cat 5e/ 6 Standard Eurostyle Modules
& Surface Box
Overall dimensions 50 x 25mm.Module comply with the ISO and
EIA TIA Standard. Each shuttered module is supplied with a slide
label field and space above, this is allowed for use of self adhesive
or further labelling if required. Termination can be made using
Keystone Faceplate
Krone tooling, a cable tie base is positioned to the side of the IDC
blocks to relieve cable stress.

Order Information:
PART Number Description
SH001A Cat 5e
SH001B Cat 6

SH 002A/B

R J 45 Cat 5e/ 6 Standard LJ6(6C) Modules

Overall dimensions 39 x 25mm. Module comply with the ISO
and EIA TIA Standard. 6c modules are ideal for floor box
installations. The compact two piece design allows for a fast
and easy in stallation and results in a low profile finish.
Order Information:
PART Number Description
SH002A Cat 5e
SH002B Cat 6

SH 003A/B

R J 45 Cat 5e/ 6 Standard Modules

Overall dimensions 50 x 25mm. Module comply with the ISO
and EIA TIA Standard. Each shuttered module is supplied with
a slide label field and space above, this is allowed for use of
self adhesive or further labelling if required. Termination can
be made using Krone tooling, a cable tie base is positioned
between the IDC blocks to relieve cable stress.

Order Information:
PART Number Description
SH002A Cat 5e
SH002B Cat 6

www.winlong-tech.com
