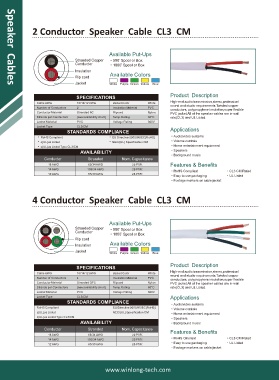

Page 2 - Speaker Cables

2 Conductor Speaker Cable CL3 CM

Available Put-Ups
Stranded Copper ·500’ Spool or Box
Conductor ·1000’ Spool or Box
Insulation
Rip cord Available Colors
Jacket White Purple Green Yellow Blue
Speaker Cables
SPECIFICATIONS Product Description
High-end audio transmission,stereo,protessionl
Cable AWG 16/14/12 AWG Jacket Color White
Number of Conductors 2 Insulation Material PVC sound and studio requirements.Twisted copper
conductors, polypropylene insulation,super flexible
Conductor Material Stranded BC Ripcord Nylon PVC jacket.All of the speaker cables are in-wall
Strands per Conductors (see availability chart) Temp.Rating 60°C rate(CL3) and UL Listed.
Jacket Material PVC Voltage Rating 300V
Jacket Type CL3/CM
STANDARDS COMPLIANCE Applications
·RoHS Compliant ·EU Directive 2002/95/EC(RoHS) ·Audio/video systems
·c(UL)us Listed ·NEC/(UL) Specification CM ·Volume controls
·c(UL)us Listed Type CL3/CM ·Home entertainment equioment
AVAILABILITY ·Speakers
·Background music
Conductor Stranded Nom. Capacitance
16 AWG 65/34 AWG 22 Pf/Ft Features & Benefits
14 AWG 105/34 AWG 25 Pf/Ft ·RoHS Compliant ·CL3 CM Rated
12 AWG 65/30 AWG 28 Pf/Ft
·Easy to use packaging ·UL Listed
·Footage markers on cable jacket

4 Conductor Speaker Cable CL3 CM

Available Put-Ups
Stranded Copper ·500’ Spool or Box
Conductor ·1000’ Spool or Box
Rip cord
Insulation Available Colors
Jacket White Purple Green Yellow Blue

SPECIFICATIONS Product Description
High-end audio transmission,stereo,protessionl
Cable AWG 16/14/12 AWG Jacket Color White sound and studio requirements.Twisted copper
Number of Conductors 4 Insulation Material PVC conductors, polypropylene insulation,super flexible
Conductor Material Stranded OFC Ripcord Nylon PVC jacket.All of the speaker cables are in-wall
Strands per Conductors (see availability chart) Temp.Rating 60°C rate(CL3) and UL Listed.
Jacket Material PVC Voltage Rating 300V
Jacket Type CL3/CM Applications
STANDARDS COMPLIANCE
·Audio/video systems
RoHS Compliant EU Directive 2002/95/EC(RoHS) ·Volume controls
c(UL)us Listed NEC/(UL) Specification CM ·Home entertainment equioment
c(UL)us Listed Type CL3/CM ·Speakers
AVAILABILITY ·Background music
Conductor Stranded Nom. Capacitance Features & Benefits
16 AWG 65/34 AWG 22 Pf/Ft
14 AWG 105/34 AWG 25 Pf/Ft ·RoHS Cinoliant ·CL3 CM Rated
12 AWG 65/30 AWG 28 Pf/Ft ·Easy to use packaging ·UL Listed
·Footage markers on cable jacket

www.winlong-tech.com
