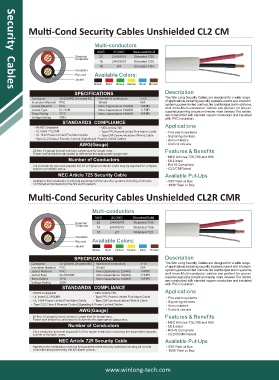

Page 2 - Security Cables

Multi-Cond Security Cables Unshielded CL2 CM

Multi-conductors
AWG #COND Stranded/Solid
Stranded 22 2/4/6/8/10 Stranded 7/30
Conductor
18 2/4/6/8/10 Stranded 7/26
16 2/4 Stranded 7/24
Insulation
Rip cord Available Colors:
Jacket
Black Red Green Yellow Blue Brown
Security Cables
SPECIFICATIONS Description
Conductor 12-22AWG Stranded BC Number of conductors 2-10 The Win Long Security Cables are designed for a wide range
Insulation Material PVC Shield N/A of applications,including security systems,sound and intercom
systems,power-limited controls,fire and burglar alarm systems,
Jacket Material PVC Nom.Capacitance 22AWG 14Pf/Ft and more.Multi-conductor cables are perfect for power
Jacket Type CL2/CM Nom.Capacitance 18AWG 17Pf/Ft supplies,signaling circuits and many more devices.The cables
Temp Rating 75°C Nom.Capacitance 16AWG 19Pf/Ft are constructed with standed copper conductors and insulated
Voltage Rating 300V with PVC insulation.
STANDARDS COMPLIANCE
·RoHS Complianit ·NEC Article 725 Applications
·UL listed CL2/CM ·Type FPL Power Limited Five Alarm Cable ·Fire alarm systems
·UL 1424 Power Limited Fire Alarm Cable ·Type CM Communications Wire & Cable ·Signaling devices
·Type CL2 Class 2 Remote Control,Signaling & Power Limited Cables ·Annunciators
AWG(Gauge) ·Control circuits
22 thru 12 gauge is most common.Larger size for longer runs... Features & Benefits
Power loss should be calculated to determine the appropriate gauge size.
Number of Conductors ·NEC Articles 725,760 and 800
·UL Listed
·RoHS Compliant
2 & 4 conductor are most popular.6,8,10 or higher conductor count may be required for complex
system or multiple zones. ·CL2/CM Rated
NEC Article 725 Security Cable Available Put-Ups
Applies to the installation of wiring & equioment of the security systems including all circuits ·500’ Reel or Box
controlled and powered by the fire alarm system. ·1000’ Reel or Box
Multi-Cond Security Cables Unshielded CL2R CMR

Multi-conductors
AWG #COND Stranded/Solid
Stranded 22 2/4/6/8/10 Stranded 7/30
Conductor 18 2/4/6/8/10 Stranded 7/26
16 2/4 Stranded 7/24
Insulation
Rip cord Available Colors:
Jacket
Black Red Green Yellow Blue Brown
SPECIFICATIONS Description
Conductor 12-22AWG Stranded BC Number of conductors 2-10 The Win Long Security Cables are designed for a wide range
Insulation Material PVC Shield N/A of applications,including security systems,sound and intercom
Jacket Material PVC Nom.Capacitance 22AWG 14Pf/Ft systems,power-limited controls,fire and burglar alarm systems,
Jacket Type CL2R/CMR Nom.Capacitance 18AWG 17Pf/Ft and more.Multi-conductor cables are perfect for power
supplies,signaling circuits and many more devices.The cables
Temp Rating 75°C Nom.Capacitance 16AWG 19Pf/Ft are constructed with standed copper conductors and insulated
Voltage Rating 300V with PVC insulation.
STANDARDS COMPLIANCE
·RoHS Complianit ·NEC Article 725 Applications
·UL listed CL2R/CMR ·Type FPL Power Limited Five Alarm Cable ·Fire alarm systems
·UL 1424 Power Limited Fire Alarm Cable ·Type CM Communications Wire & Cable ·Signaling devices
·Type CL2 Class 2 Remote Control,Signaling & Power Limited Cables ·Annunciators
AWG(Gauge) ·Control circuits
22 thru 12 gauge is most common.Larger size for longer runs... Features & Benefits
Power loss should be calculated to determine the appropriate gauge size.
Number of Conductors ·NEC Articles 725,760 and 800
·UL Listed
·RoHS Compliant
2 & 4 conductor are most popular.6,8,10 or higher conductor count may be required for complex
system or multiple zones. ·CL2R/CMR Rated
NEC Article 725 Security Cable Available Put-Ups
Applies to the installation of wiring & equioment of the security systems including all circuits ·500’ Reel or Box
controlled and powered by the fire alarm system. ·1000’ Reel or Box

www.winlong-tech.com
