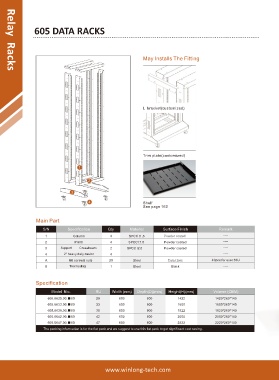

Page 4 - Relay Racks
P. 4
605 DATA RACKS
May Installs The Fitting
Relay Racks
L bracket(customized)
Trim plate(customized)
Shelf
See page 160
Main Part
S/N Specification Qty Material Surface Finish Remark
1 Column 4 SPCC t1.5 Powder coated ----
2 Plinth 4 SPCC t1.5 Powder coated ----
3 Support Crossbeam 2 SPCC t2.0 Powder coated ----
4 2” heavy duty castor 4 ----
A M6 screw& nuts 20 Steel Color zinc 40pcs for over 33U
B Trox tooling 1 Steel Black ----
Specification
Model N o. RU Width (mm) Depth(D)(mm) Height(H)(mm) Volume (CBM)
605.6629.00.■00 29 600 600 1422 1420*260*140
605.6633.00.■00 33 600 600 1600 1600*260*140
605.6638.00.■00 38 600 600 1822 1820*260*140
605.6642.00.■00 42 600 600 2000 2000*260*140
605.6647.00.■00 47 600 600 2222 2220*260*140
The packing information is for the flat pack and we suggest to use this flat pack to get significant cost saving.
