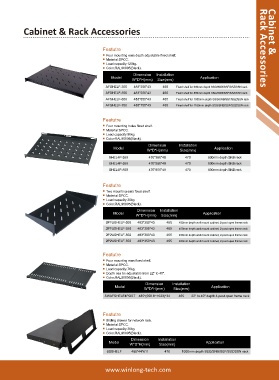

Page 5 - Cabinet & Rack Accessories

Cabinet & Rack Accessories Cabinet &

Featutre Rack Accessories
Four mounting ears depth adjustable fixed shelf.
Material:SPCC.
Load capacity:120kg.
Color:RAL90005(Black).
Dimension Installation
Model W*D*H(mm) Size(mm) Application
AFSHELF-350 483*350*43 465 Fixed shelf for 600mm depth SSG/SNB/SSF/SSZ/SSN rack
AFSHELF-550 483*550*43 465 Fixed shelf for 800mm depth SSG/SNB/SSF/SSZ/SSN rack
AFSHELF-650 483*650*43 465 Fixed shelf for 1000mm depth SSG/SNB/SSF/SSZ/SSN rack
AFSHELF-750 483*750*43 465 Fixed shelf for 1100mm depth SSG/SNB/SSF/SSZ/SSN rack

Featutre
Four mounting holes fixed shelf.
Material:SPCC.
Load capacity:90kg.
Color:RAL90005(Black).
Dimension Installation
Model W*D*H(mm) Size(mm) Application
SHEL4P-350 470*350*48 470 600mm depth SNB rack
SHEL4P-550 470*550*48 470 600mm depth SNB rack
SHEL4P-650 470*650*48 470 600mm depth SNB rack

Featutre
Two mounting ears fixed shelf.
Material:SPCC.
Load capacity:20kg.
Color:RAL90005(Black).
Dimension Installation
Model W*D*H(mm) Size(mm) Application
2P1USHELF-300 483*300*43 465 450mm depth wall mount cabinet, 2-post open frame rack
2P1USHELF-350 483*350*43 465 450mm depth wall mount cabinet, 2-post open frame rack
2P2USHELF-350 483*300*43 465 450mm depth wall mount cabinet, 2-post open frame rack
2P2USHELF-350 483*350*43 465 450mm depth wall mount cabinet, 2-post open frame rack

Featutre
Four mounting ears fixed shelf.
Material:SPCC.
Load capacity:70kg.
Depth can be adjustable from 22" to 40".
Color:RAL90005(Black).
Dimension Installation
Model Application
W*D*H(mm) Size(mm)
SWAFSHELF4POST 485*(558.8~1023)*34 465 22" to 40" depth 4-post open frame rack

Featutre
Sliding drawer for network rack.
Material:SPCC.
Load capacity:30kg.
Color:RAL90005(Black).
Dimension Installation
Model Application
W*D*H(mm) Size(mm)
SSSHELF 465*44*611 470 1000mm depth SSG/SNB/SSF/SSZ/SSN rack
