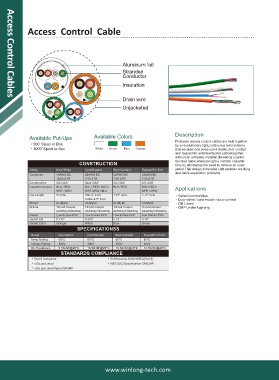

Page 2 - Access Control Cables

Access Control Cable

Aluminum foil
Stranded
Conductor

Insulation

Drain wire
Access Control Cables
Unjacketed

Available Put-Ups Available Colors Description
·500’ Spool or Box Profusion access control cables are held together
by a revolutionary tight,continuous twist scheme
·1000’ Spool or Box White Green Blue Orange that secures lock power,card reader,door contact
and request for exit(Rex/Spare) cablestogether
without an adhesive material,delivering a better
CONSTRUCTION bundled cable,whilesaving the installer valuable
time by eliminating the need to remove an outer
Group Door Strike Card Reader Door Contact Reqiest For Exit jacket.This design eliminates cold weather cracking
Conductor 18AWG BC 22AWG BC 22AWG BC 22AWG BC and cable separation problems.
19/30 STR 7/30 STR 7/30 STR 7/30 STR
Construction 4/C OAS 3pair OAS 2/C OAS 4/C OAS
Insulation Colors BLK RED, BLK RED / GRN BLK RED BLK RED Applications
WHT GRN WHT ORG BLU WHT GRN
Lay Length 3" nom. Pair-2" nom. 1.75" nom. 1.75" nom. ·Gated communities
Cable-4.5" nom. ·Door strike / card reader / door contect
Shield AL/Mylar AL/Mylar AL/Mylar AL/Mylar ·CM Listed
Draine Tinned Cooper Tinned Cooper Tinned Cooper Tinned Cooper ·CMP Under Applying
22AWG(7/30AWG) 22AWG(7/30AWG) 22AWG(7/30AWG) 22AWG(7/30AWG)
Jacket Low Smoke PVC Low Smoke PVC Low Smoke PVC Low Smoke PVC
Jacket OD 0.178’’ 0.200’’ 0.12’’ 0.14’’
Jacket Color Orange White Blue Green
SPECIFICATIONSS
Group Door Strike Card Reader Door Contact Reqiest For Exit
Temp.Rating 60°C 60°C 60°C 60°C
Voltage Rating 300V 300V 300V 300V
DC Resistance 6.5Ω /M’@20°C 16.5Ω /M’@20°C 16.5Ω /M’@20°C 16.5Ω /M’@20°C
STANDARDS COMPLIANCE
·RoHS Compliant ·EU Directive 2002/95/EC(RoHS)
·c(UL)us Listed ·NEC/(UL) Specification CM/CMP
·c(UL)us Listed Type CM/CMP

www.winlong-tech.com
